Home
>>
Oldsmobile
>>
1998
>>
Intrigue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Locks
>>
Power Door Lock Actuator
>>
Right Rear Door Lock Actuator
Right Rear Door Lock Actuator

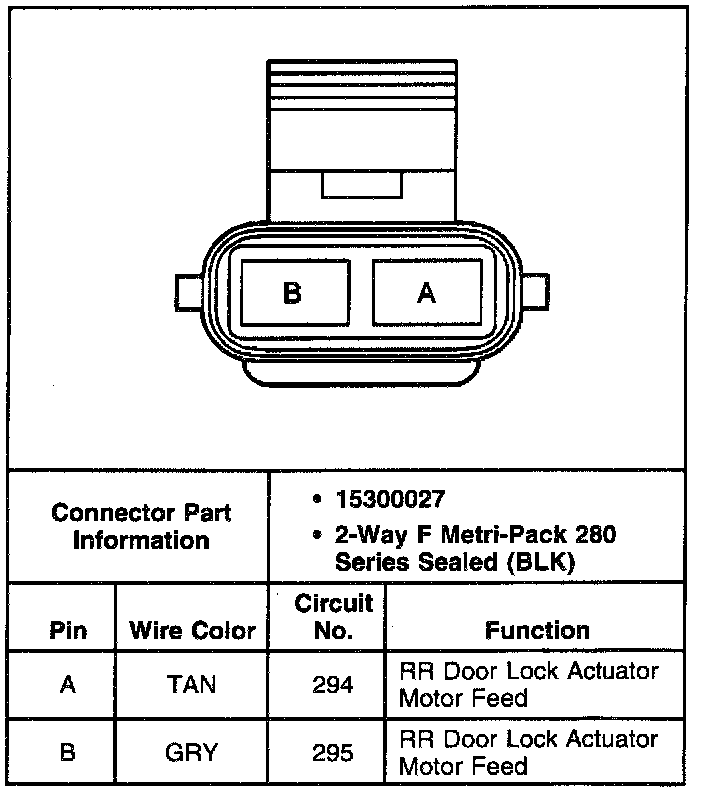

Door Lock, RR: C2 - Actuator Motor:
