Hydraulic Control Assembly - Antilock Brakes
>>
Brake Solenoid Valve
Brake Solenoid Valve

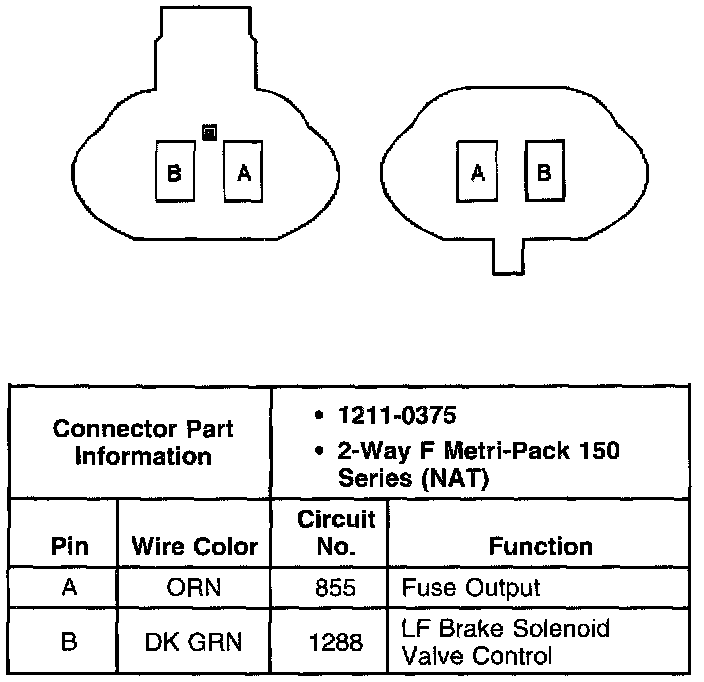

Brake Solenoid Valve (LF):

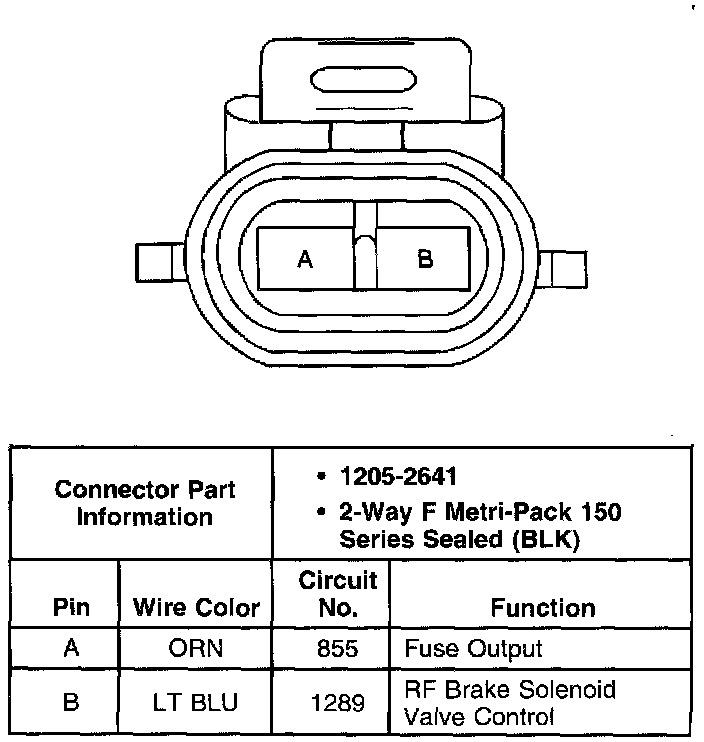

Brake Solenoid Valve (RF):
