Home >> Oldsmobile >> 1998 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Brake Solenoid Valve >> RF

RF

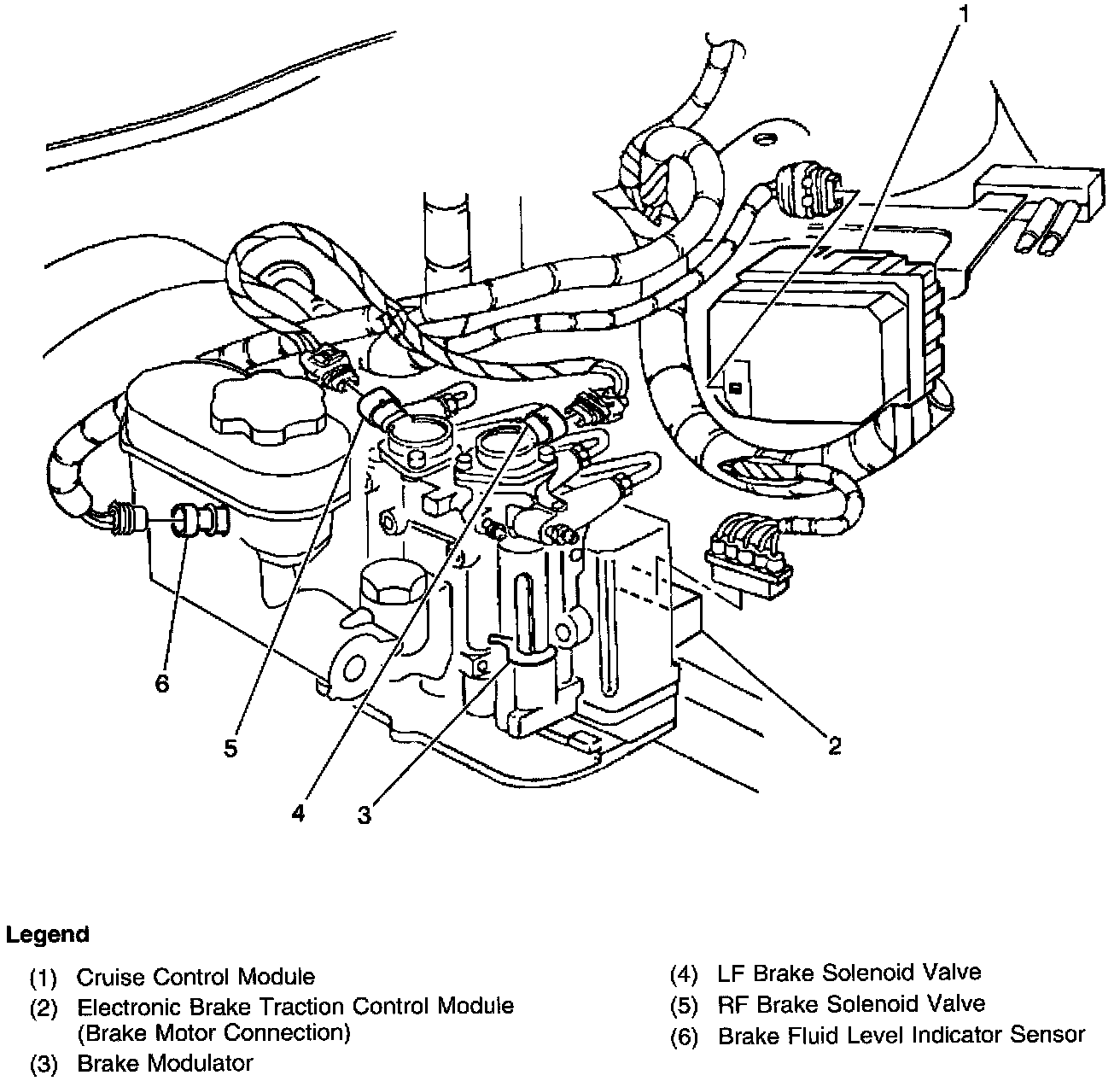

Brake Modulator Brake Motor, Brake Solenoid Valve & Cruise Control Module (L36):





RF Part of brake modulator, LH side of engine compartment, on brake master cylinder
