Wheel Speed Sensor Replacement (Rear Wheels)

REMOVAL PROCEDURE

IMPORTANT: The rear wheel speed sensors and rings are integral with the hub and bearing assemblies.
If a speed sensor or a ring needs replacement, replace the entire hub and bearing assembly. Refer to Wheel Bearing/Hub Replacement - Rear in Rear Suspension.

1. Raise and support the vehicle on a suitable hoist.
2. Remove the rear tire and wheel assembly. Refer to Wheel Removal in Tires and Wheels.

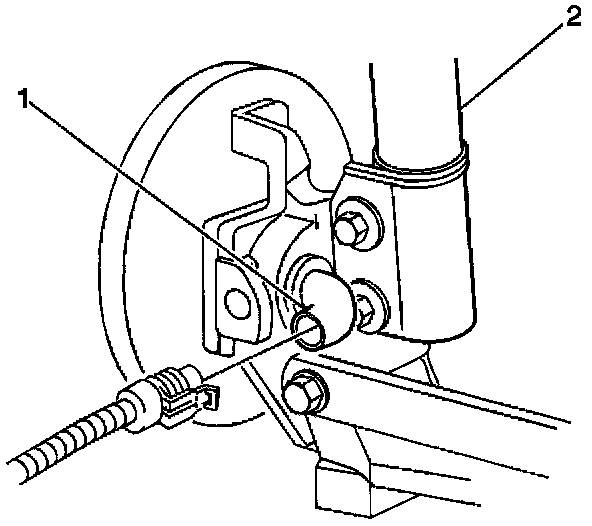

3. Remove the rear wheel speed sensor electrical connector (1), located next to the rear strut.

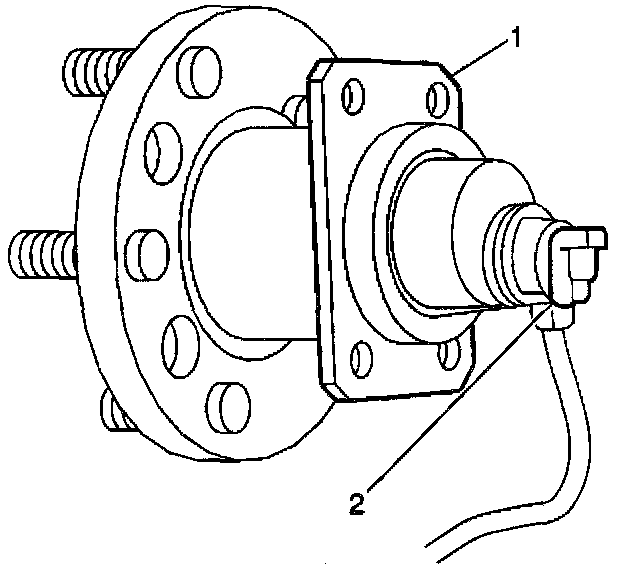

4. Remove the hub and bearing assembly (1). Refer to Wheel Bearing/Hub Replacement - Rear in Rear Suspension.

INSTALLATION PROCEDURE

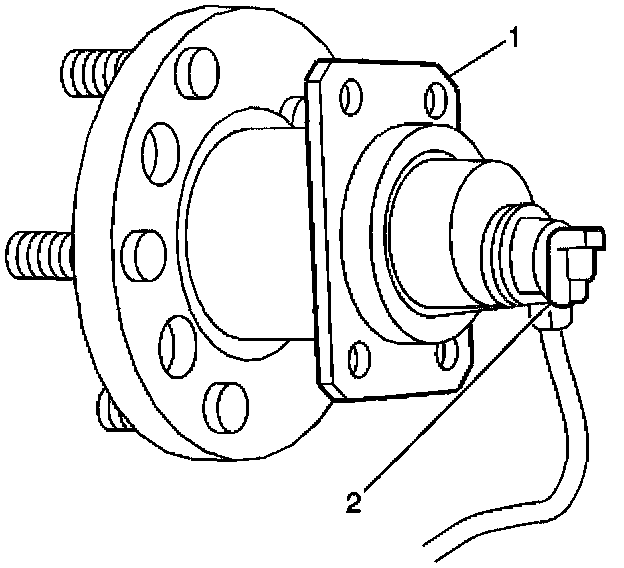

1. Install the hub and bearing assembly (1) to the vehicle. Refer to Wheel Bearing/Hub Replacement - Rear in Rear Suspension.

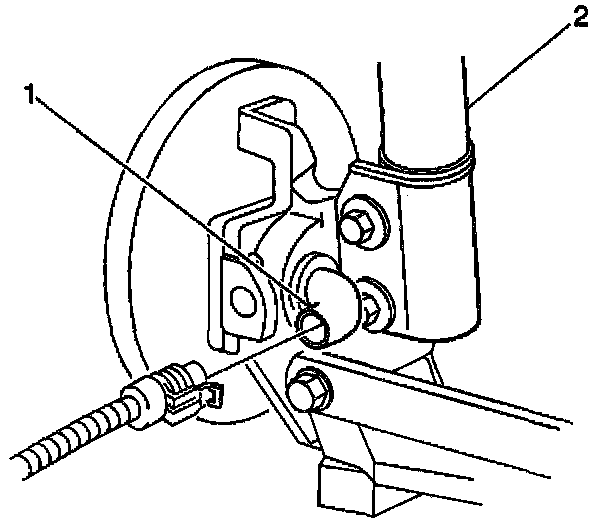

2. Install the rear wheel speed sensor electrical connector (1).
3. Install the wheel and tire assembly. Refer to Wheel Installation in Tires and Wheels.
4. Lower the vehicle.
5. Turn the ignition switch to the ON position, engine off.
6. Perform the ABS Diagnostic System Check.
