General Information

- Tools Required
- Scan Tool

NOTICE: Prior to bleeding the brakes, the front and rear displacement cylinder pistons must be returned to the topmost position. The preferred method uses a Scan Tool to perform the rehoming procedure. If a Scan Tool is not available, the second procedure may be used, but it is extremely important that the procedure be followed exactly as outlined.

IMPORTANT: Bleed the ENTIRE brake system if air has entered the hydraulic brake system through either of the following conditions:

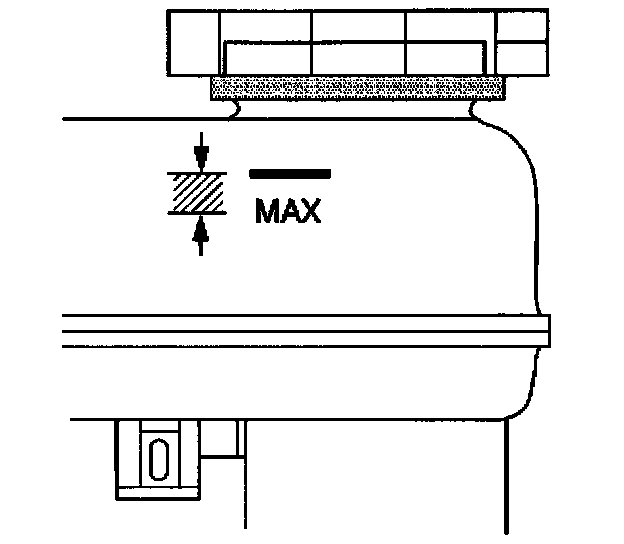

- The master cylinder brake fluid level is at the bottom of the master cylinder reservoir.
- Any part of the hydraulic brake system is opened between the master cylinder and any of the brake caliper flexible hoses.

IMPORTANT: The Motor Rehome function cannot be performed if current DTCs are present. If DTCs are present, repair the vehicle and clear the DTCs before performing the Motor Rehome function.

1. Use a scan tool to perform the Motor Rehome function.
2. Bleed the hydraulic brake system. Refer to Brake System Pressure Bleeding or Brake System Manual Bleeding in Brake Bleeding.
