Seat Back Replacement - Rear (Stationary Seat Back W/Armrest)

REMOVAL PROCEDURE

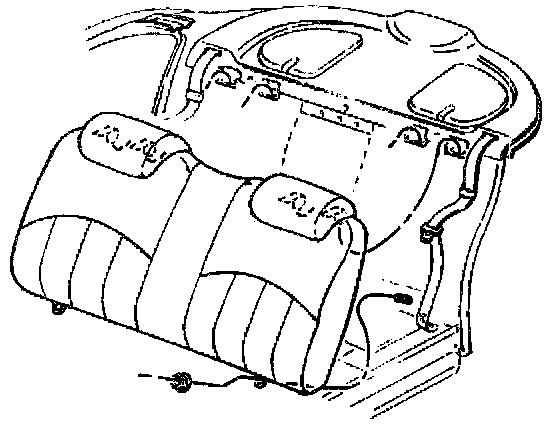

Seat Back Replacement: Rear (Stationary Seat Back w/Armrest) - Removal Procedure:

1. Remove the rear seat cushion.
3. Grasp the bottom of the seat back and swing it upwards.

Lift the entire seat back upwards to unhook it from the vehicle.
4. Remove the seat back from the vehicle.

INSTALLATION PROCEDURE

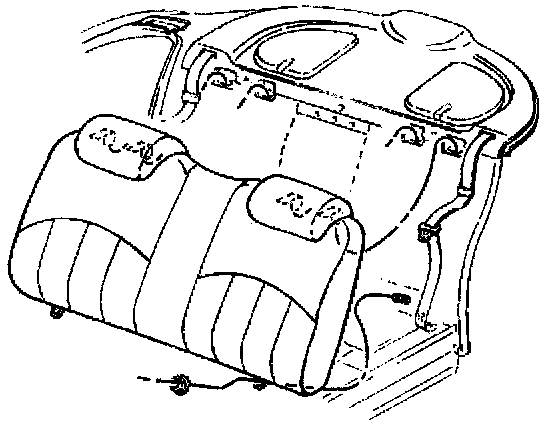

Seat Back Replacement: Rear (Stationary Seat Back w/Armrest) - Installation Procedure:

1. Install the seat back to the vehicle.
2. Hook the top of the seat back to the vehicle.
3. Install the seat back nuts.

Tighten
Tighten the seat back nuts to 10 N.m (89 lb in).

4. Install the rear seat cushion.
