Seat Back Replacement - Rear (Stationary Seat Back Armrest)
REMOVAL PROCEDURESeat Back Replacement: Rear (Stationary Seat Back Armrest) - Removal Procedure:
1. Remove the seat back.

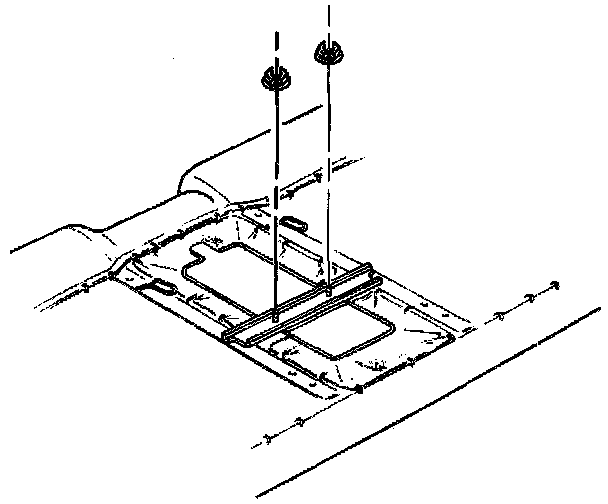

2. Remove the seat back armrest nuts.
Seat Back Replacement: Rear (Stationary Seat Back Armrest) - Removal Procedure:

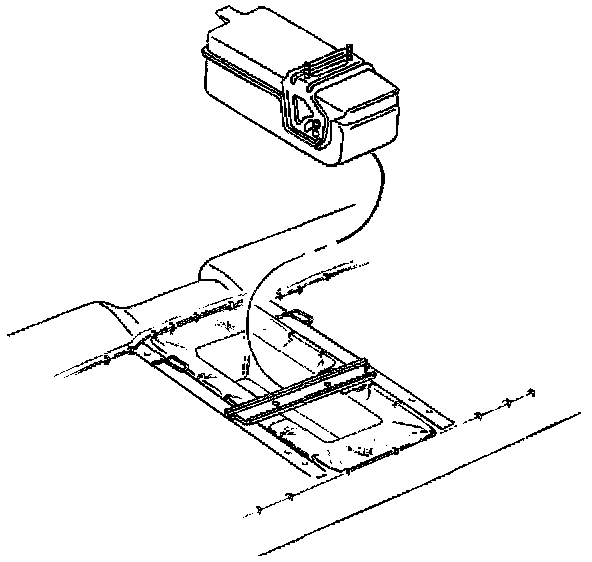

3. Remove the seat back armrest from the seat back.
INSTALLATION PROCEDURE
Seat Back Replacement: Rear (Stationary Seat Back Armrest) - Installation Procedure:

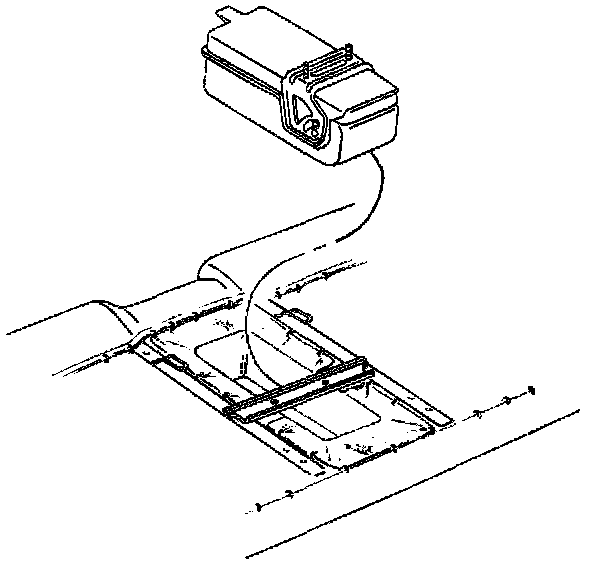

1. Install the seat back armrest to the seat back.
Seat Back Replacement: Rear (Stationary Seat Back Armrest) - Installation Procedure:

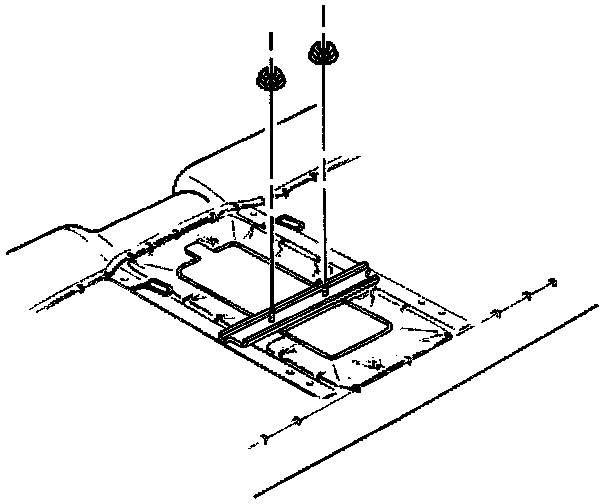

2. Install the seat back armrest nuts.
Tighten
Tighten the seat back armrest nuts to 3 N.m (27 lb in).
3. Install the seat back.
