Seat Back Cover Replacement - Rear
REMOVAL PROCEDURESeat Back Cover Replacement: Rear - Removal Procedure:
1. Remove the seat back.
2. Remove the seat back center pivot.
3. Remove the seat back strikers.
4. Open the J-retainers on the seat back support bolsters.
5. Carefully pull the seat back support cover from the support.
Seat Back Cover Replacement: Rear - Removal Procedure:

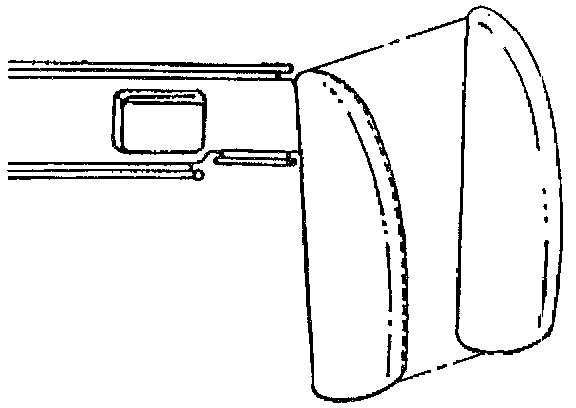

6. Remove the seat back support bolsters from the support cover.
INSTALLATION PROCEDURE
Seat Back Cover Replacement: Rear - Installation Procedure:
1. Install the seat back support bolsters to the support cover.
Seat Back Cover Replacement: Rear - Installation Procedure:
2. Carefully pull the seat back support cover over the support.
3. Close the J-retainers on the seat back support bolsters.
4. Install the seat back strikers.
5. Install the seat back center pivot.
6. Install the seat back.
