Seat Back Center Pivot Replacement - Rear Folding

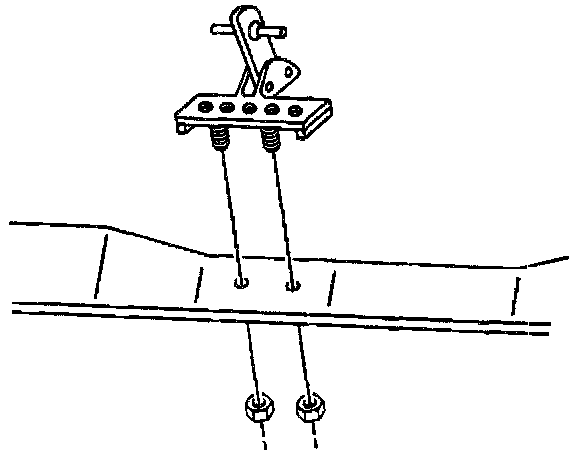

REMOVAL PROCEDURESeat Back Center Pivot Replacement: Rear Folding - Removal Procedure:
1. Remove the rear seat back.
2. Remove the seat back center pivot nuts.
3. Remove the seat back center pivot from the seat back support.
INSTALLATION PROCEDURE

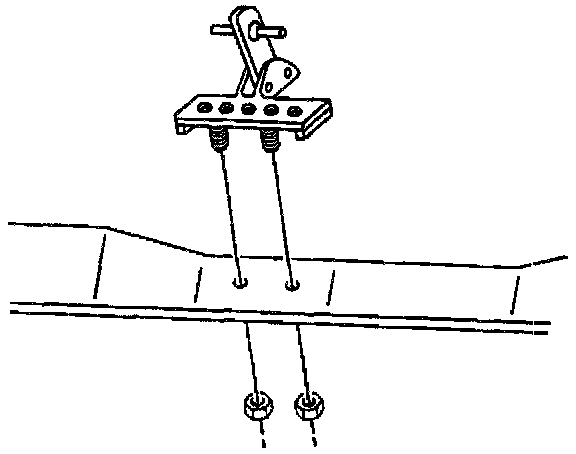

Seat Back Center Pivot Replacement: Rear Folding - Installation Procedure:
1. Install the seat back center pivot to the seat back support.
2. Install the seat back center pivot nuts.
Tighten
Tighten the seat back center pivot nuts to 10 N.m ( 89 lb in).
3. Install the rear seat back.
