Seat Adjuster Motor Replacement - Front

REMOVAL PROCEDURE

Seat Adjuster Motor Replacement: Front - Removal Procedure:

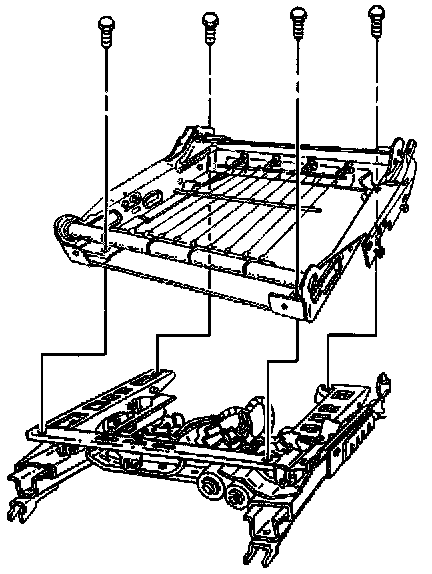

1. Remove the power seat adjuster.
2. Remove the power seat adjuster actuator motor bracket to seat adjuster nut.
3. Remove the drive cables.
4. Remove the power seat adjuster actuator motor from the seat adjuster.

INSTALLATION PROCEDURE

Seat Adjuster Motor Replacement: Front - Installation Procedure:

1. Install the power seat adjuster actuator motor to the seat adjuster.
2. Install the drive cables.
3. Install the power seat adjuster actuator motor bracket to seat adjuster nut.

Tighten
Tighten the power seat adjuster actuator nut to 10 N.m (S9 lb in).

4. Install the power seat adjuster.
