Arm Rest Replacement - Rear Seat
REMOVAL PROCEDUREArm rest Replacement: Rear Seat - Removal Procedure:
1. Fold down the seat back with the armrest.
2. Open the J-retainer at the bottom of the seat back cover.

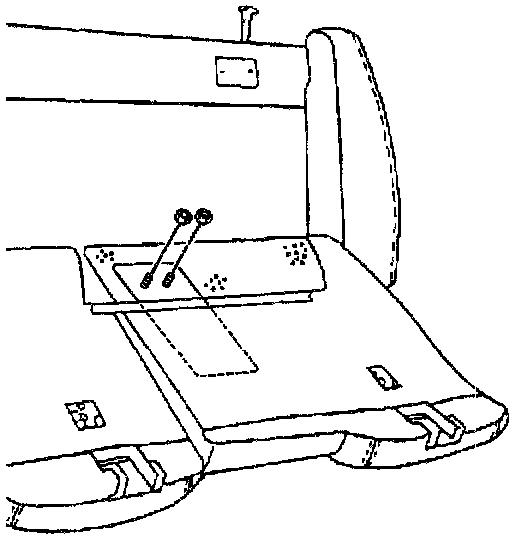

3. Remove the seat back armrest nuts.
Arm rest Replacement: Rear Seat - Removal Procedure:
4. Remove the seat back armrest from the rear seat back.
INSTALLATION PROCEDURE
Arm rest Replacement: Rear Seat - Installation Procedure:
1. Install the seat back armrest to the rear seat back. Make sure the seat back cover in neatly tucked underneath the armrest.
Arm rest Replacement: Rear Seat - Installation Procedure:
2. Install the seat back armrest nuts.
Tighten
Tighten the seat back armrest nuts to 10 N.m (89 lb in).
3. Close the J-retainer at the bottom of the seat back cover.
4. Fold up the seat back with the armrest.
