Seat Back Latch Striker Replacement - Rear Folding

REMOVAL PROCEDURE

Seat Back Latch Striker Replacement: Rear Folding - Removal Procedure:

1. Remove the rear seat back.
2. Open the J-retainers at the top of the seat back support.

Remove the staples.

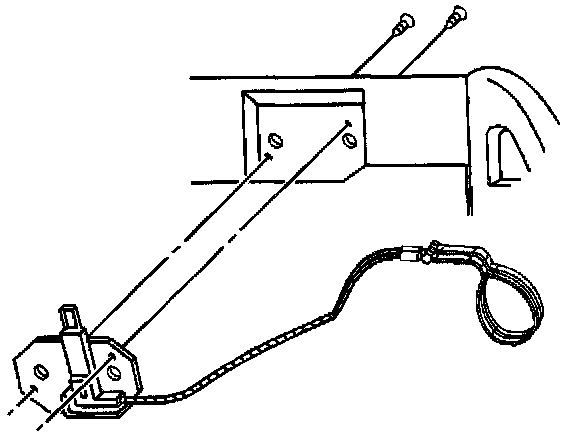

3. Remove the seat back striker screws.
4. Remove the seat back striker with the cables attached from the seat back support.

INSTALLATION PROCEDURE

Seat Back Latch Striker Replacement: Rear Folding - Installation Procedure:

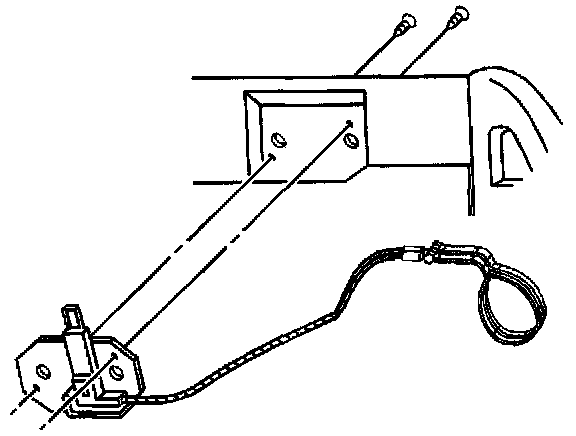

1. Install the seat back striker with the cables attached to the seat back support.
2. Install the seat back striker screws.

Tighten
Tighten the seat back striker screws to 6 N.m (53 lb in).

3. Close the J-retainers at the top of the seat back support.
4. Install the seat back.
