Seat Back Latch Replacement - Rear Folding

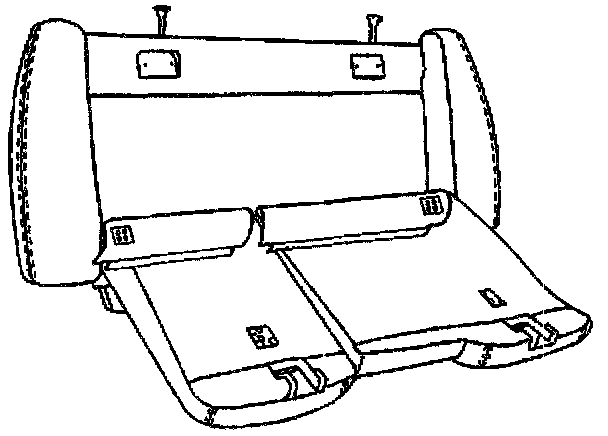

REMOVAL PROCEDURESeat Back Latch Replacement: Rear Folding - Removal Procedure:
1. Fold down the left or right split folding seat back.
2. Open the J-retainer at the bottom edge of the split folding seat back.
Seat Back Latch Replacement: Rear Folding - Removal Procedure:
3. Remove the outboard split folding seat back pivot screws.
4. Remove the outboard split folding seat back pivot from the seat back.
5. Remove the outboard split folding seat back from the split folding seat back support.
6. Place the split folding seat back on a clean, protected surface.
7. Remove the seat cover.

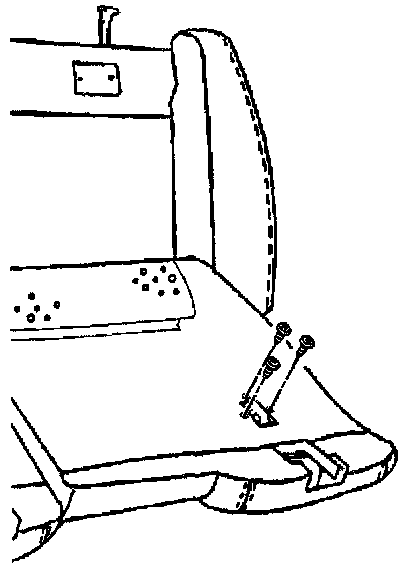

8. Remove the split folding seat back latch screws.
9. Reach between the split folding seat back pad and the split folding seat back cover to remove the split folding seat back latch.
INSTALLATION PROCEDURE

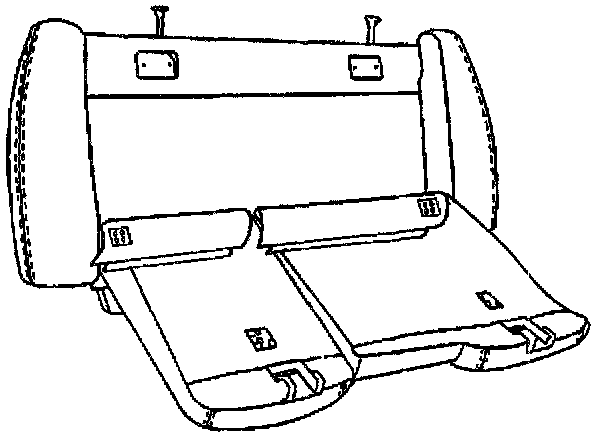

Seat Back Latch Replacement: Rear Folding - Installation Procedure:
1. Reach between the split folding seat back pad and the split folding seat back cover to install the split folding seat back latch.
2. Install the split folding seat back latch screws.
Tighten
Tighten the seat back latch screws to 10 N.m (89 lb in).
3. Install the seat back cover.
4. Place the split folding seat back into the split folding seat back support assembly.
5. Install the outboard split folding seat back pivot to the split folding seat back.
6. Install the outboard split folding seat back pivot screws.
Tighten
Tighten the outboard split folding seat back pivot screws to 10 N.m (89 lb in).
Seat Back Latch Replacement: Rear Folding - Installation Procedure:
7. Close the J-retainer at the bottom edge of the split folding seat back.
8. Fold up the left or right split folding seat back.
