Seat Cushion Retainer Replacement - Rear

REMOVAL PROCEDURE

Seat Cushion Retainer Replacement: Rear - Removal Procedure:

1. Remove the rear seat cushion.

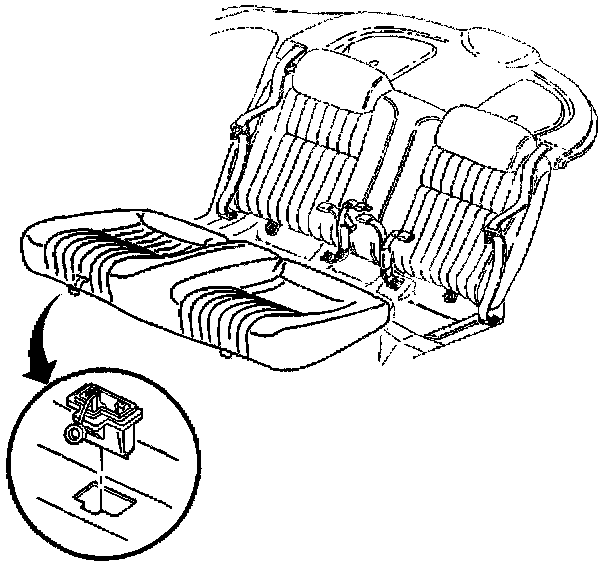

2. Unsnap the seat cushion retainer from the floor using a flat-bladed tool.
3. Remove the seat cushion retainer from the floor.

INSTALLATION PROCEDURE

Seat Cushion Retainer Replacement: Rear - Installation Procedure:

1. Install the seat cushion retainer to the floor. Pressing down the retainer until fully seated into the floor.
2. Install the rear seat cushion.
