Seat Cushion Replacement - Rear
REMOVAL PROCEDURESeat Cushion Replacement: Rear - Removal Procedure:

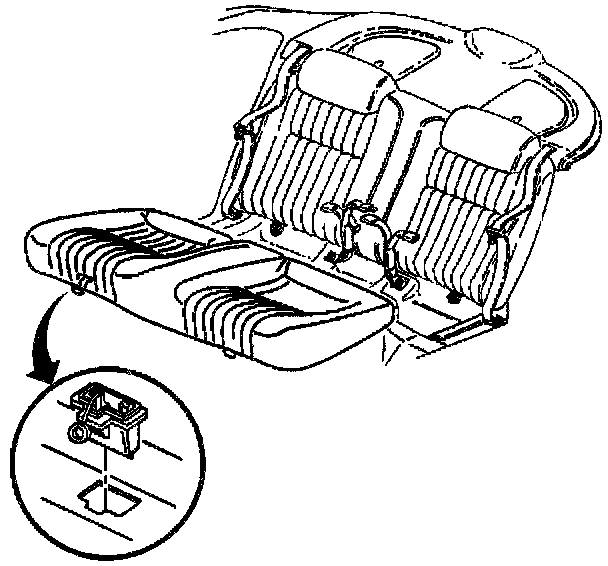

1. Pull the tabs on both of the rear seat cushion retainers.
Lift the front of the seat cushion upwards.
2. Remove the seat cushion from the vehicle.
INSTALLATION PROCEDURE
Seat Cushion Replacement: Rear - Installation Procedure:

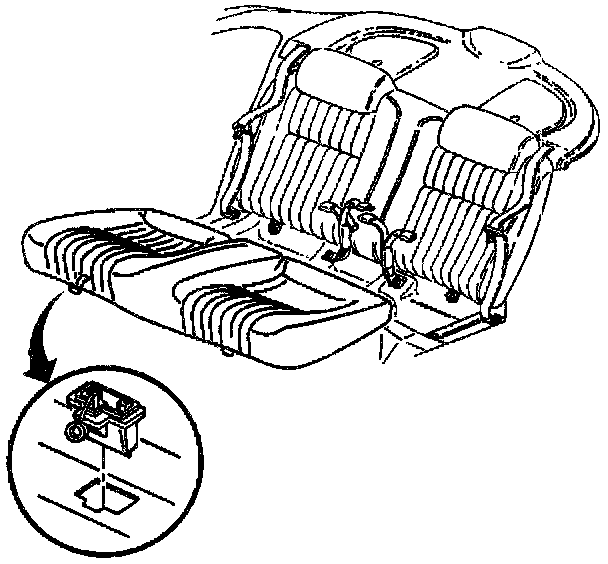

1. Install the seat cushion into the vehicle. Route the seat center belts through the seat cushion.
2. Align the seat cushion loops to the retainers. Firmly push on the seat cushion to engage the retainers.
3. Pull upwards on the front of the seat cushion. If the retainers do not hold tightly, replace the seat cushion retainers.
