Sunshade Replacement

REMOVAL PROCEDURE

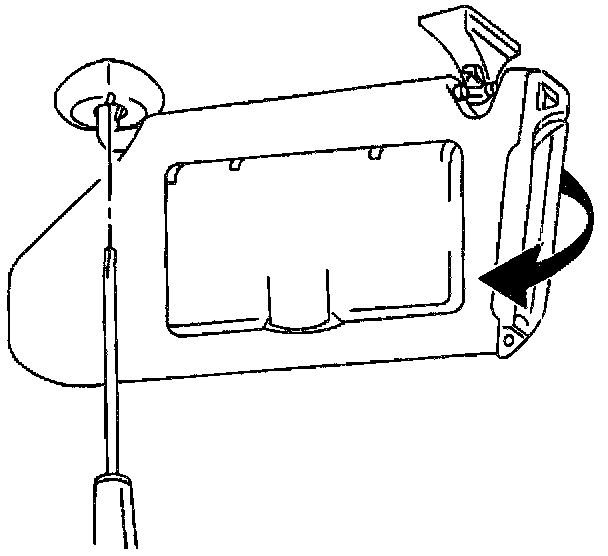

The sunshades can be equipped with an illuminated vanity mirror. The illuminated vanity mirror is not serviced as a separate unit.

Sunshade Replacement: Removal Procedure:

1. Fold the sunshade so the bottom edge is pointing straight down.
2. Unsnap the sunshade from the retainer and position the sunshade just behind the sunshade retainer (between the retainer and windshield).
3. Using a flat-bladed tool, insert the tool into the slot on the sunshade retainer shaft.
4. Holding the flat-bladed tool stationary, slowly rotate the sunshade, about four (4) inches towards the rear of the vehicle while gently pulling downward.

Sunshade Replacement: Removal Procedure:

5. Push upward on the free end of the sunshade assembly and continue to rotate towards the side glass for the remainder of the travel.
6. Pull down on the sunshade to release it from the sunshade bezel on the headliner.
7. Disconnect the electric connector if equipped.
8. Remove the sunshade from the vehicle.

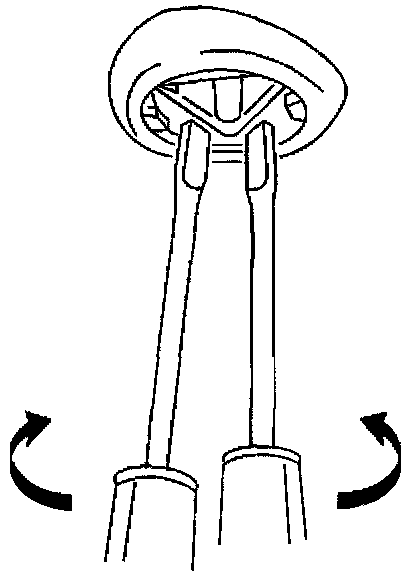

9. Remove the sunshade retainer bezel, by inserting a small flat-bladed tool into the slots and moving the locking tab inward.

Sunshade Replacement: Removal Procedure:

10. Remove the sunshade retainer bezel from the headliner.

INSTALLATION PROCEDURE

Sunshade Replacement: Installation Procedure:

1. Install the sunshade retainer bezel to the headliner, pressing into place until fully seated.

Sunshade Replacement: Installation Procedure:

2. Position the sunshade in the vehicle.
3. Connect the electric connector if equipped.

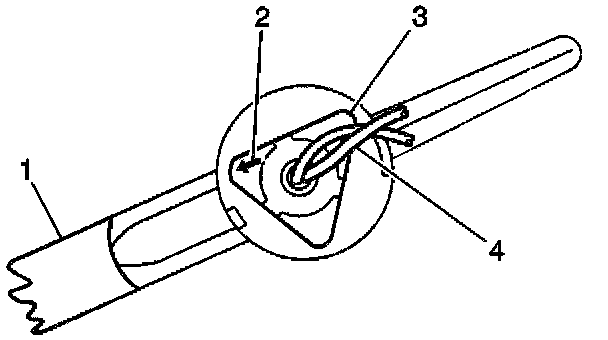

4. Align the arrow (2) on the top side of the sunshade retainer (3) until it is pointing parallel with the top edge of the sunshade (1).

Sunshade Replacement: Installation Procedure:

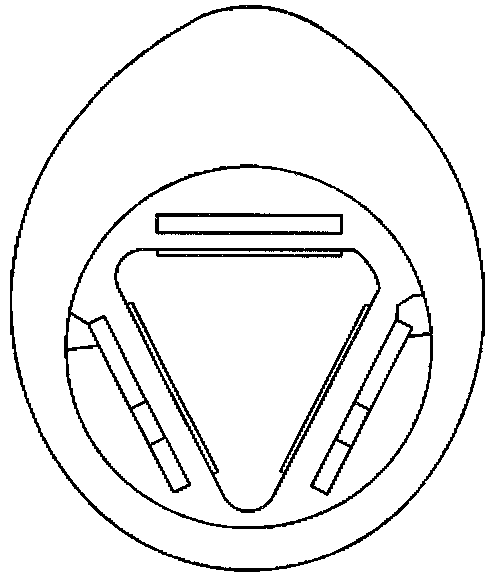

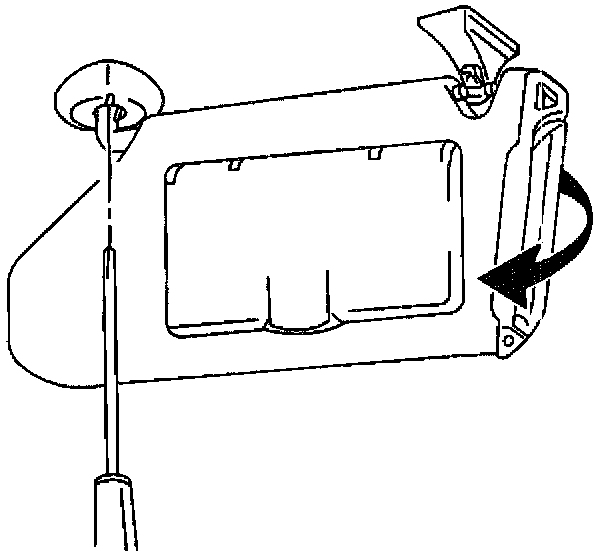

5. To install the sunshade align the triangular portions of the sunshade and bezel then push upwards and rotate the sunshade toward the windshield.

A slight click will be heard once the retainer shaft seats into the bezel.
6. Lock the sunshade into the retainer bracket.
