Home >> Oldsmobile >> 1998 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Body and Frame >> Relays and Modules - Body and Frame >> Fuel Door Release Relay >> Diagrams

Fuel Door Release Relay: Diagrams

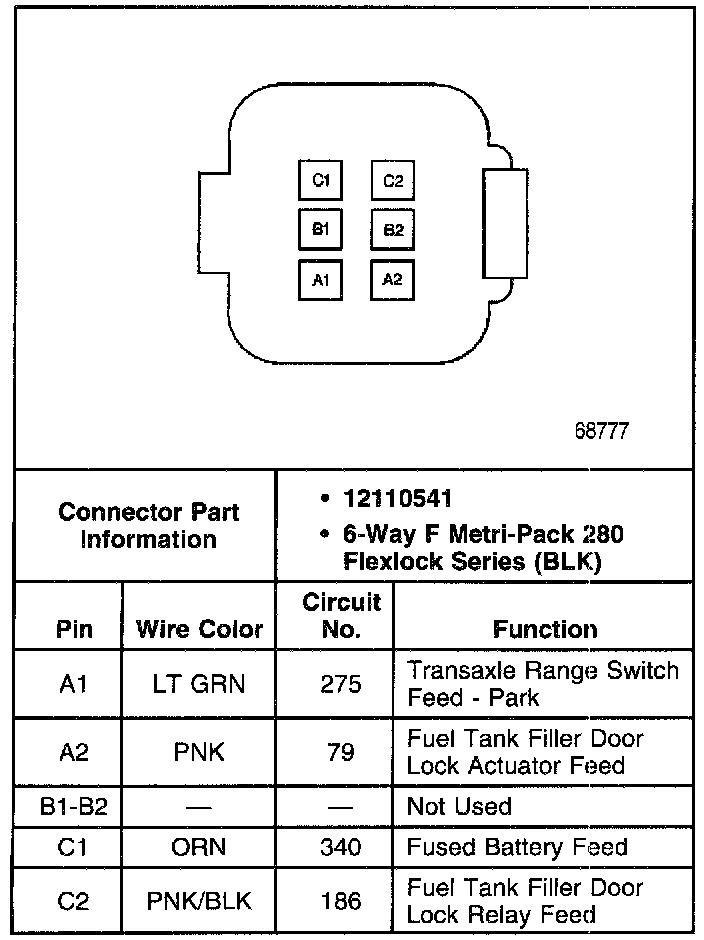

Fuel Tank Filler Door Lock Relay:
