Trunk / Liftgate Lock Cylinder: Service and Repair

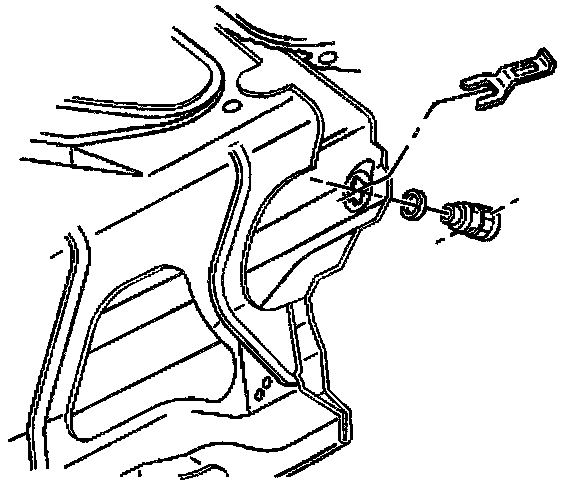

REMOVAL PROCEDURELock Cylinder Replacement: Rear Compartment Lid - Removal Procedure:
1. Open the rear compartment.
2. Pull off the retainer from the rear compartment lock cylinder.
Lock Cylinder Replacement: Rear Compartment Lid - Removal Procedure:
3. Remove the lock cylinder actuator cable from the lock cylinder.
Lock Cylinder Replacement: Rear Compartment Lid - Removal Procedure:
4. Remove the lock cylinder and gasket from the rear compartment lid.
INSTALLATION PROCEDURE
Lock Cylinder Replacement: Rear Compartment Lid - Installation Procedure:
1. Install the lock cylinder and gasket to the rear compartment lid.
2. Press on the retainer to the lock cylinder.
Lock Cylinder Replacement: Rear Compartment Lid - Installation Procedure:
3. Install the lock cylinder actuator cable to the lock cylinder.
4. Close the rear compartment.
