System Check - Automatic Door Lock

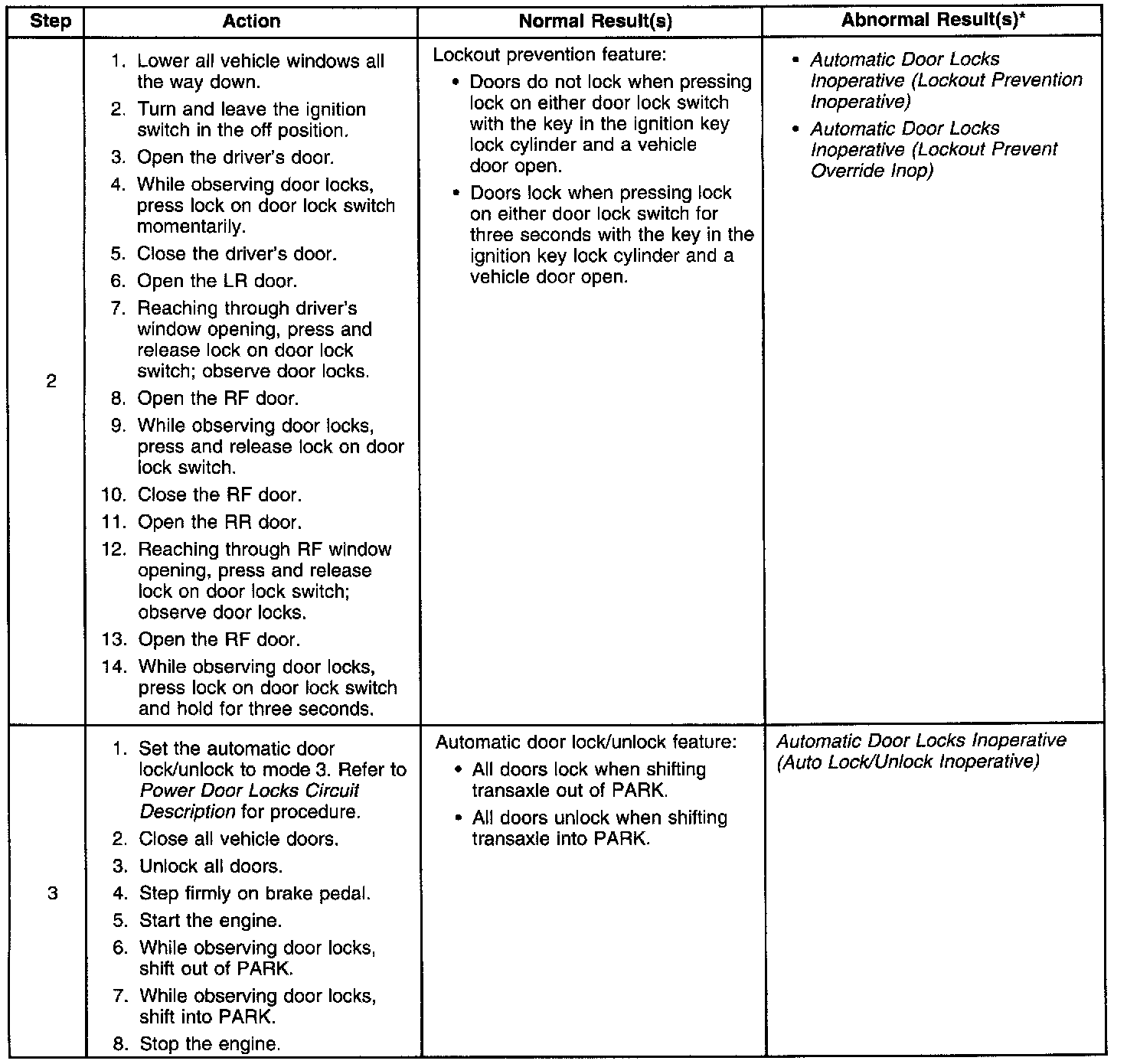

Automatic Door Lock System Check (Part 1 Of 3):

Automatic Door Lock System Check (Part 2 Of 3):

Automatic Door Lock System Check (Part 3 Of 3):

The Automatic Door Locks System Check test's the Body Control Module (BCM) for the operation of the automatic door locks For more information regarding other BCM-controlled systems, refer to Body Control System Description in Body Control System. Description and Operation
