Lock Cylinder Replacement: Door

REMOVAL PROCEDURE

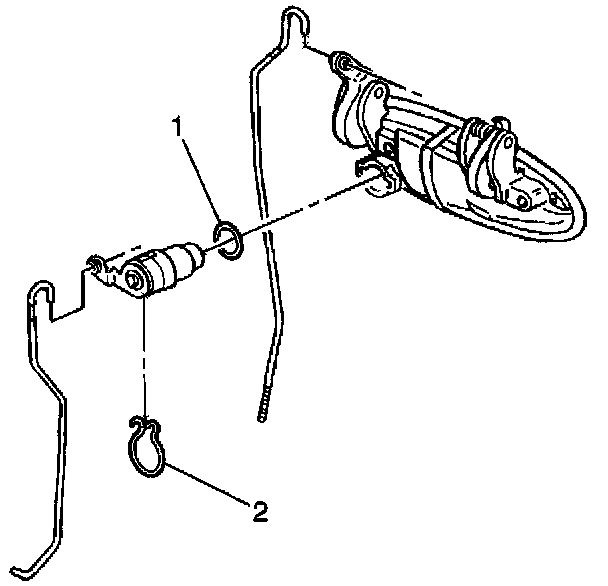

Lock Cylinder Replacement: Door - Removal Procedure:

1. Remove the front door outside door handle.
2. Remove the lock cylinder retainer clip (2).
3. Remove the lock cylinder from the outside door handle.

INSTALLATION PROCEDURE

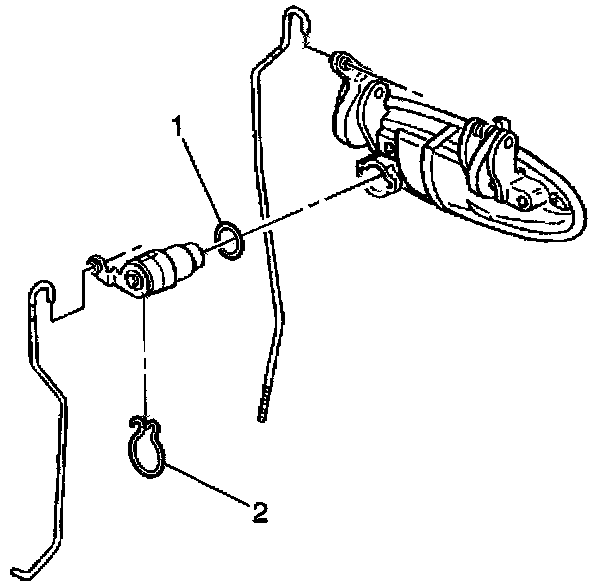

Lock Cylinder Replacement: Door - Installation Procedure:

1. Install the lock cylinder to the door handle.
2. Install the lock cylinder retainer clip (2).
3. Install the outside door handle.
