Windshield Pillar Garnish Molding

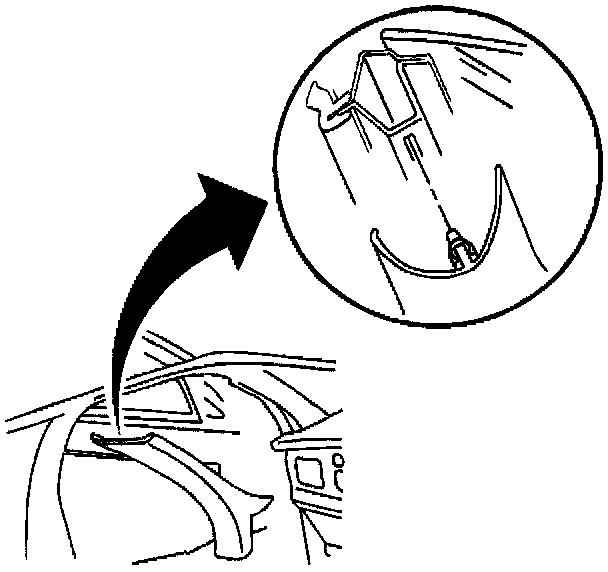

REMOVAL PROCEDURE

Garnish Molding Replacement: Windshield Pillar - Removal Procedure:

1. Reposition the weatherstrip.
2. Disengage the retaining tabs to remove the molding.
3. Disengage the clips to remove the molding.

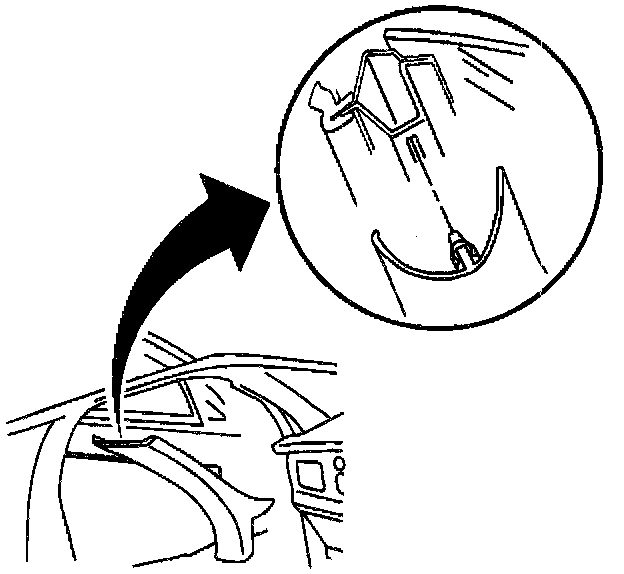

INSTALLATION PROCEDURE

Garnish Molding Replacement: Windshield Pillar - Installation Procedure:

1. Engage the retaining tabs to install the molding.
2. Engage the clips to install the molding.
