Rear Shelf Trim Panel
REMOVAL PROCEDURETools Required
J 38778 Door Trim Pad and Garnish Clip Remover

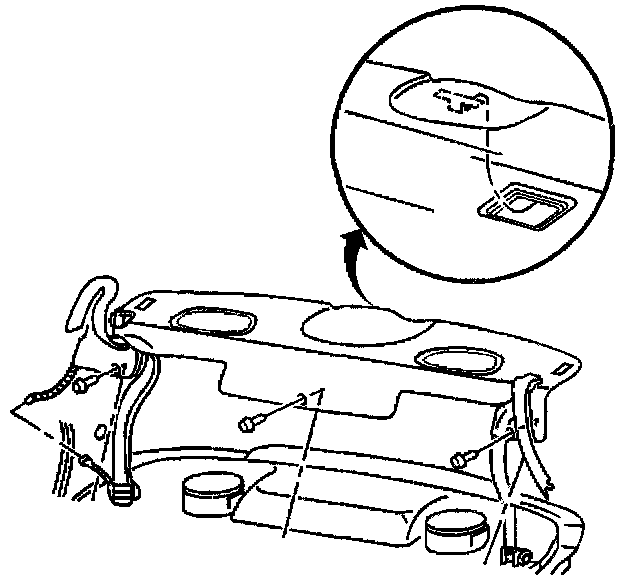

Trim Panel Replacement: Rear Shelf - Removal Procedure:
1. Remove the rear seat cushions and seatback.
2. Remove the upper quarter trim.
3. Remove the push-in retainers from the rear window trim panel using J 38778.
4. Remove the rear seat belts from slots in the rear window panel trim.
5. Disconnect the electrical connector from the high mounted stop lamp.
6. Remove the rear window trim panel by sliding out.
INSTALLATION PROCEDURE

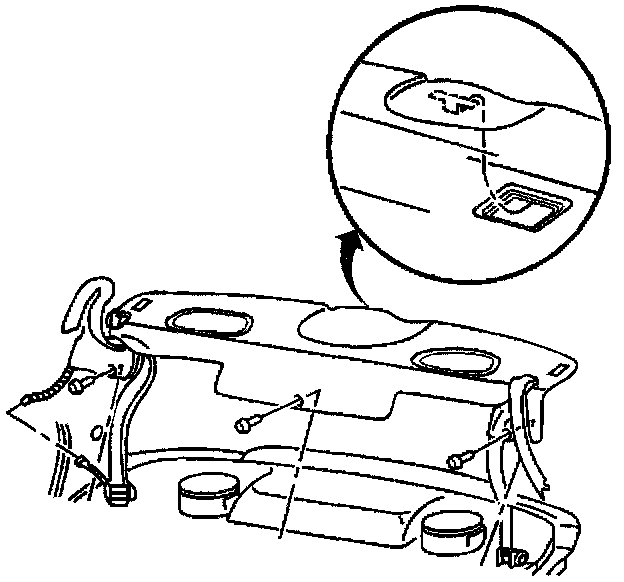

Trim Panel Replacement: Rear Shelf - Installation Procedure:
1. Connect the electrical connector to the high mounted stop lamp.
2. Install the seat belts through slots in the rear window trim panel.
3. Install the rear window trim panel by sliding in.
4. Install the push-in retainers to the rear window trim panel.
5. Install the upper quarter trim.
6. Install the rear seatback and seat cushions.
