Rear Quarter Upper Trim

REMOVAL PROCEDURE
Tools Required
J 38778 Door Trim Pad and Garnish Clip Remover

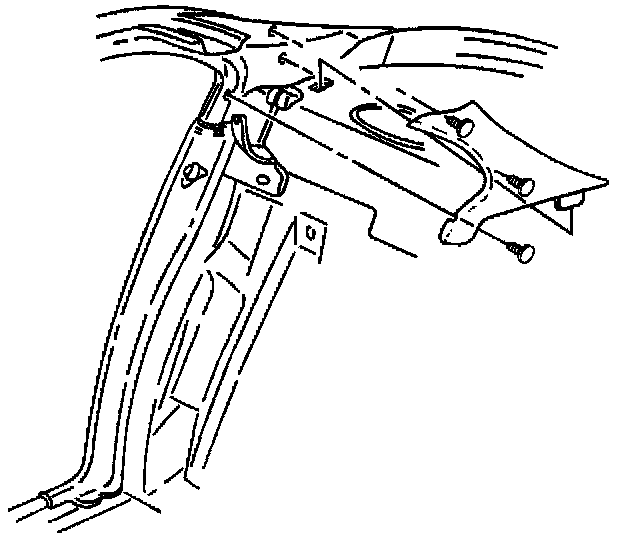

Trim Panel Replacement: Rear Quarter Upper - Removal Procedure:

1. Remove quarter upper trim by disengaging push-in retainers using J 38778.
2. Remove quarter upper trim from vehicle.

INSTALLATION PROCEDURE

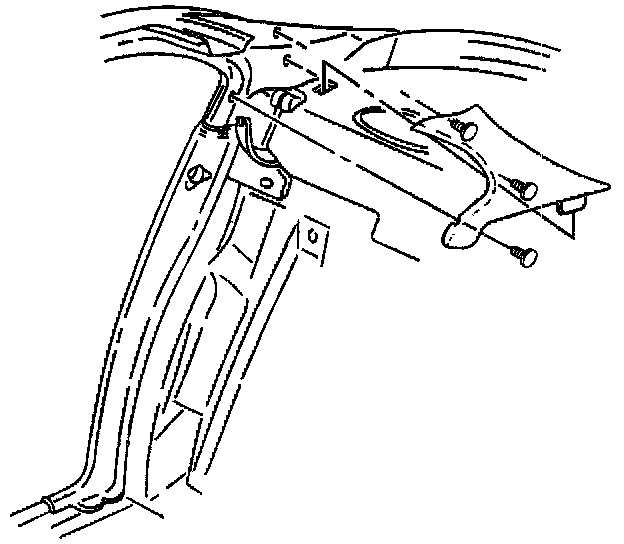

Trim Panel Replacement: Rear Quarter Upper - Installation Procedure:

1. Align quarter upper trim tab to slot in sail panel.
2. Install quarter upper trim retainers to holes in a sail panel and press in until fully seated.
