Rear Quarter Lower Trim

REMOVAL PROCEDURE
Tools Required
J 38778 Door Trim Pad and Garnish Clip Remover

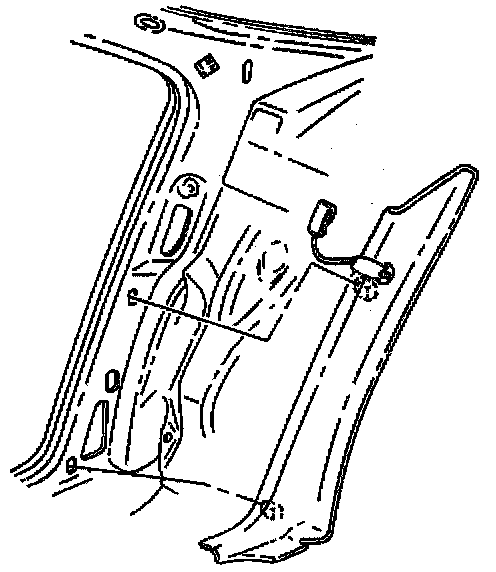

Trim Panel Replacement: Rear Quarter Lower - Removal Procedure:

1. Remove rear seatback and cushion.
2. Remove quarter lower trim by disengaging push-in retainers using J 38778.
3. Remove quarter lower trim from vehicle.

INSTALLATION PROCEDURE

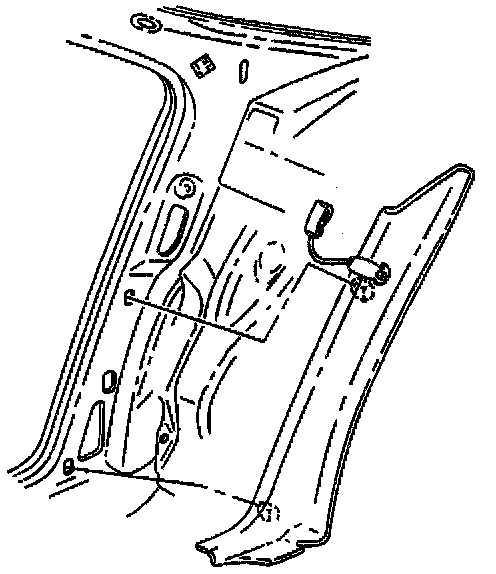

Trim Panel Replacement: Rear Quarter Lower - Installation Procedure:

1. Position front edge of quarter lower trim over skirt of door weatherstrip.
2. Install quarter lower trim retainers to holes body panel and press in until fully seated.
3. Install rear seatback and cushion.
