Upper Center Pillar Trim

REMOVAL PROCEDURE
Tools Required
J 38778 Door Trim Pad and Garnish Clip Remover

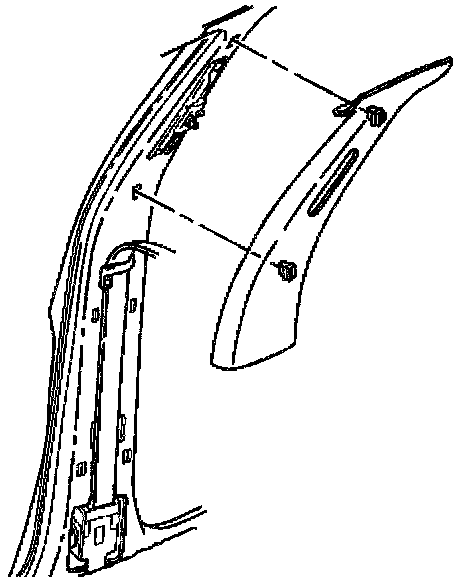

Trim Panel Replacement: Upper Center Pillar - Removal Procedure:

1. Remove the seat belt upper guide loop attachment.
2. Remove the upper trim panel from the A-pillar using J38778.
3. Remove the upper trim panel from the vehicle.
4. Reposition the weatherstrip.

INSTALLATION PROCEDURE

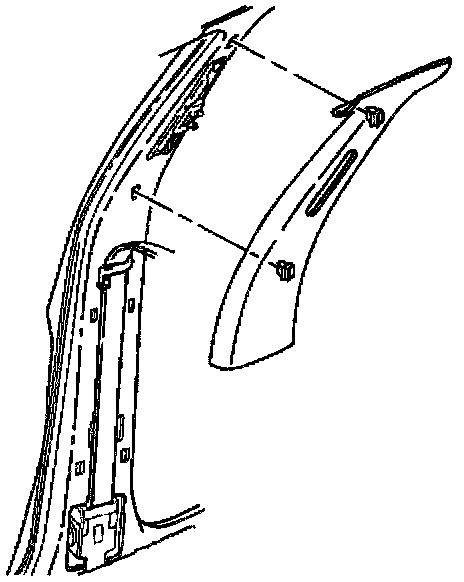

Trim Panel Replacement: Upper Center Pillar - Removal Procedure:

1. Align the upper trim panel to the A-pillar.
2. Press firmly on the upper trim panel until the retainers are fully seated.
3. Install the seat belt upper guide loop attachment.
