Lower Center Pillar Trim

REMOVAL PROCEDURE
Tools Required
J 38778 Door Trim Pad and Garnish Clip Remover

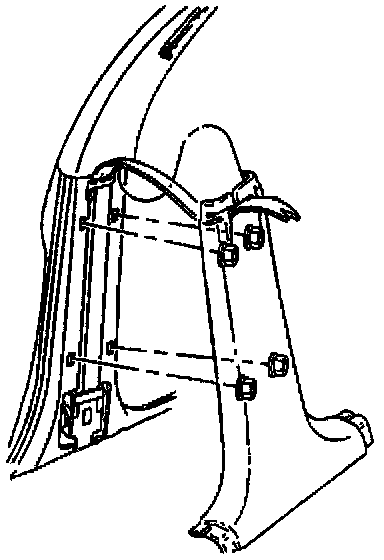

Trim Panel Replacement: Lower Center Pillar - Removal Procedure:

1. Remove the carpet retainers.
2. Remove the lower trim panel from the B-pillar using J38778.
3. Remove the seat belt from the slot in the lower trim panel.
4. Reposition the weatherstrip.
5. Remove the lower trim panel from the vehicle.

INSTALLATION PROCEDURE

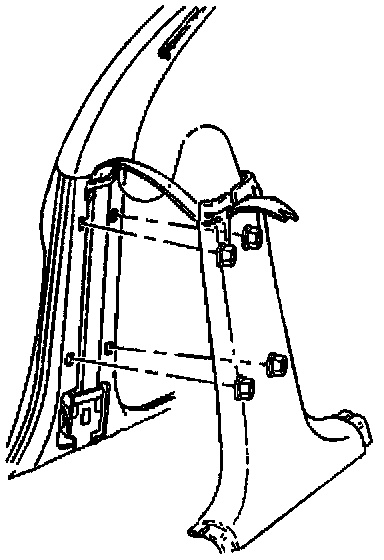

Trim Panel Replacement: Lower Center Pillar - Installation Procedure:

1. Install the seat belt to the slot in the lower trim panel.
2. Align the lower trim panel to the B-pillar.
3. Press firmly on the lower trim panel until fully seated.
4. Install the carpet retainers.
