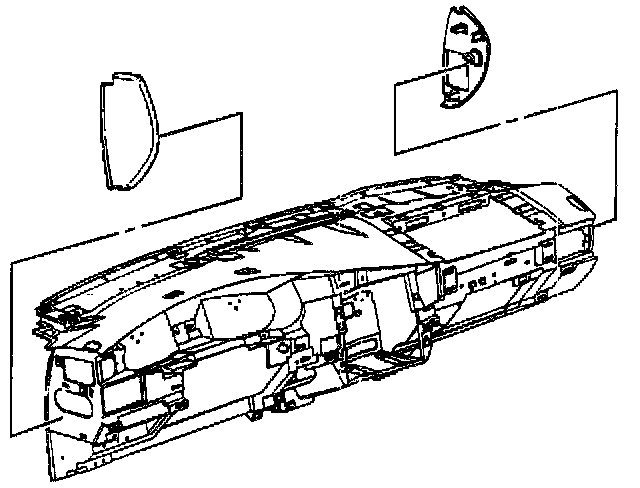

Instrument Panel Endcap Replacement

REMOVAL PROCEDURE

IP Endcap Replacement: Removal Procedure:

1. Using a flat-bladed tool as an aid if necessary, pull the rear edge of the LH Instrument Panel (IP) access opening cover outboard to release the retainers.
2. Grasp the RH IP access opening cover in the indentation and pull the rear edge of the cover outboard to release the retainers.
3. Release the forward edge of the IP access opening cover(s) from behind the hinge pillar and remove the cover.

INSTALLATION PROCEDURE

IP Endcap Replacement: Installation Procedure:

1. Align and insert the forward edge of the IP access opening cover(s) behind the hinge pillar.
2. Align the IP access opening cover retainers to the slots on the IP trim pad, then push firmly to secure.
