Instrument Panel Accessory Trim Plate Replacement

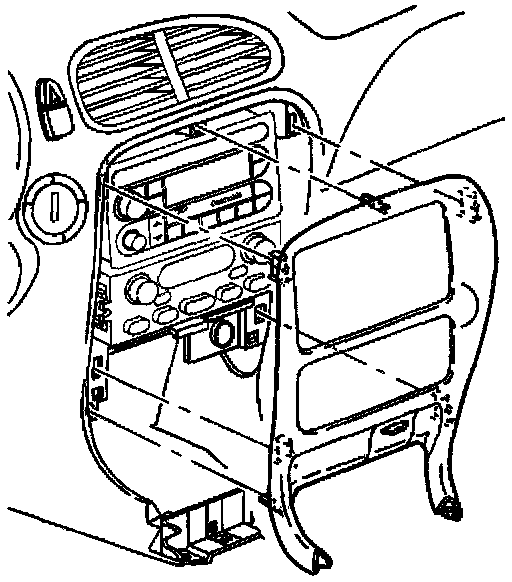

REMOVAL PROCEDURE

Trim Plate Replacement: IP Accessory - Removal Procedure:

1. Remove the front floor console trim plate.
2. Grasp the instrument panel (IP) accessory trim plate and carefully and evenly pull to release the retainers from the IP trim pad.
3. Disconnect the heated seat switch electrical connector, if equipped.
4. Remove the accessory trim plate.

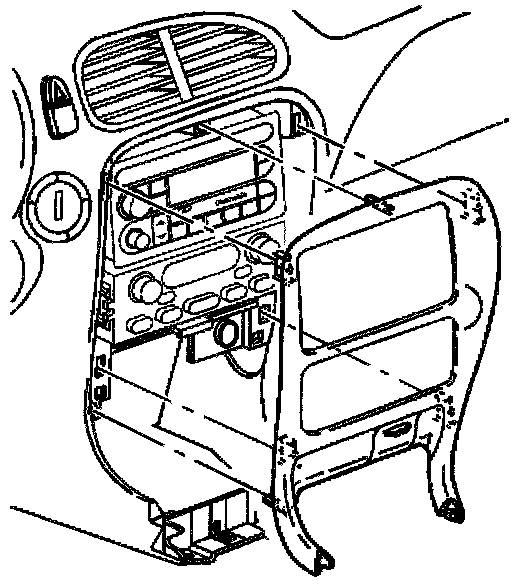

INSTALLATION PROCEDURE

Trim Plate Replacement: IP Accessory - Installation Procedure:

1. Connect the heated seat switch electrical connector, if equipped.
2. Align the IP accessory trim plate retainers to the slots in the IP trim pad.
3. Carefully and evenly press the trim plate into place to secure the retainers.
4. Install the front floor console trim plate.
