Armrest Pull Cup - All

REMOVAL PROCEDURE

Armrest Pull Cup Replacement: All - Removal Procedure:

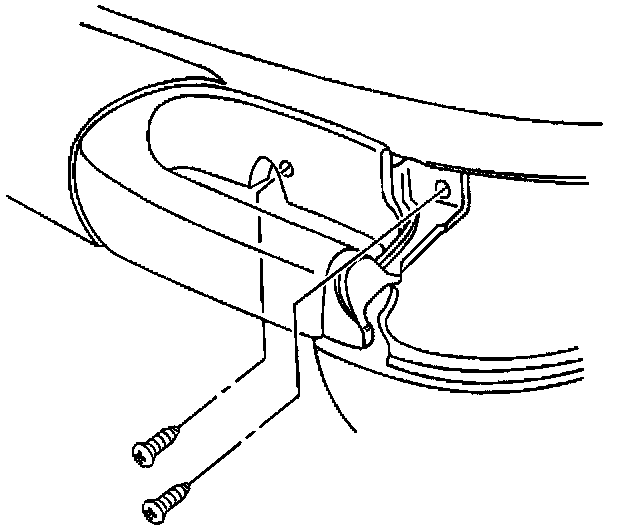

1. Remove the screws from the pull handle.
2. Remove the pull handle from the door inner trim panel.

INSTALLATION PROCEDURE

Armrest Pull Cup Replacement: All - Installation Procedure:

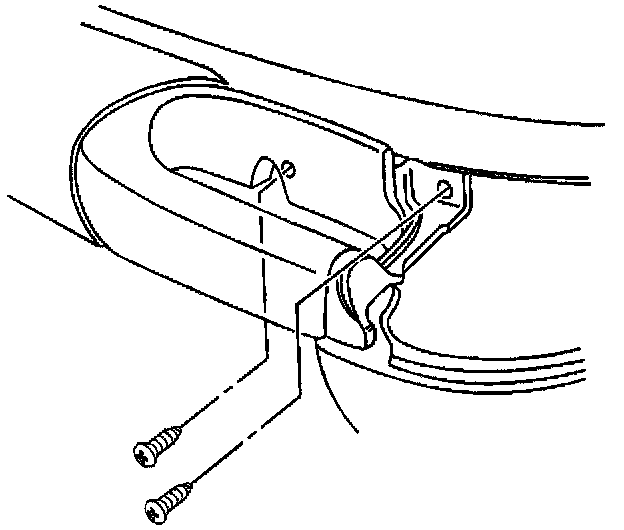

1. Install the pull handle to the door trim panel.
2. Install the screws to the pull handle.

Tighten
Tighten the pull handle screws to 2 N.m (18 lb in).
