Compartment Trim and Cargo Net Replacement: Rear

REMOVAL PROCEDURE

Compartment Convenience Net Replacement: Rear - Removal Procedure:

1. Open the rear compartment.

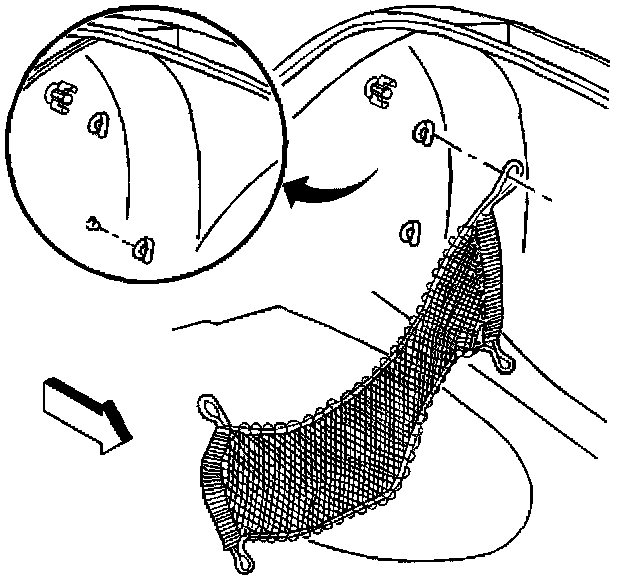

2. Remove the rear compartment convenience net from the retainers at the tail lamps wing nuts.
3. Remove the rear compartment convenience net from the rear compartment.

INSTALLATION PROCEDURE

Compartment Convenience Net Replacement: Rear - Installation Procedure:

1. Install the rear compartment convenience net to rear compartment.

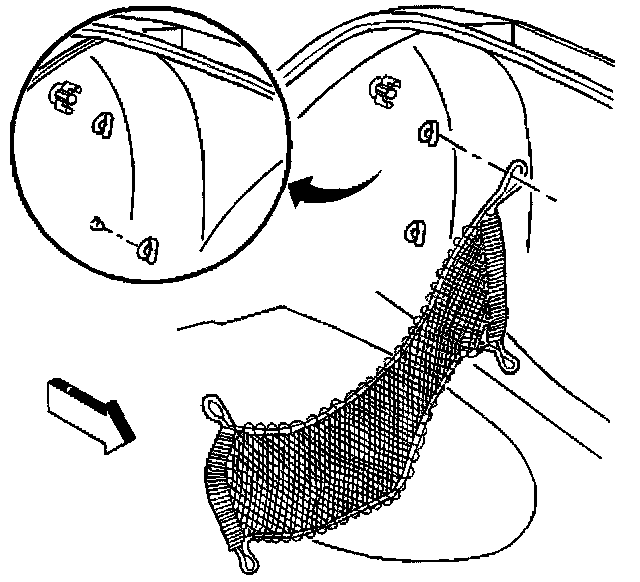

2. Install the rear compartment convenience net to retainers at the tail lamps wing nuts.
3. Close the rear compartment.
