Compartment Sill Plate Replacement - Rear

REMOVAL PROCEDURE

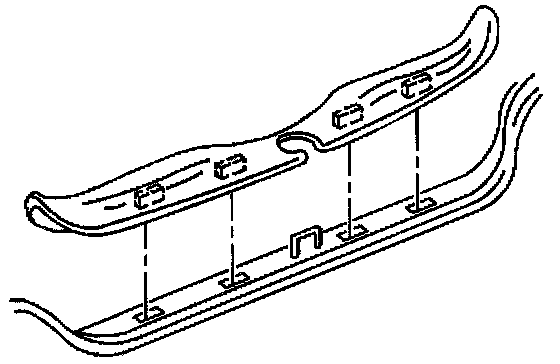

Compartment Sill Plate Replacement: Rear - Removal Procedure:

1. Open the rear compartment.
2. Pull up on the rear compartment sill plate to release the spring clips.
3. Remove the rear compartment sill plate from rear compartment.

INSTALLATION PROCEDURE

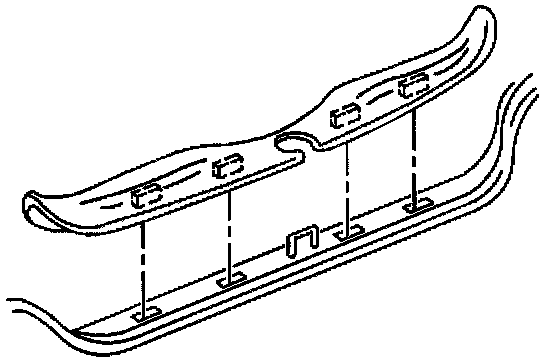

Compartment Sill Plate Replacement: Rear - Installation Procedure:

1. Align the spring clips to slots in rear compartment.
2. Press down on the rear compartment sill plate with even pressure until fully seated.
3. Close the rear compartment.
