Window Belt Inner
REMOVAL PROCEDURESealing Strip: Front Door Window Belt Inner - Removal Procedure:
1. Lower the front door window.
2. Remove the inner trim panel.

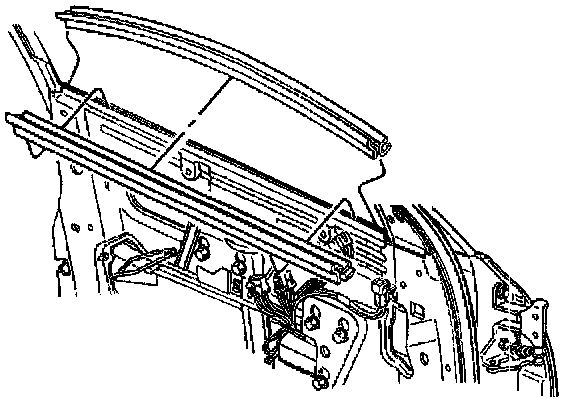

3. Remove the inner belt sealing strip, by lifting the sealing strip from the pinchweld flange.
INSTALLATION PROCEDURE
IMPORTANT:
^ Ensure the front end of the inner belt sealing strip is inserted into the gap formed by the window weatherstrip and the door inner panel.
^ Ensure the rear end of the inner belt sealing strip is flush to the rear leg of the window weatherstrip but not interfering with the path of the window.
Sealing Strip: Front Door Window Belt Inner - Installation Procedure:

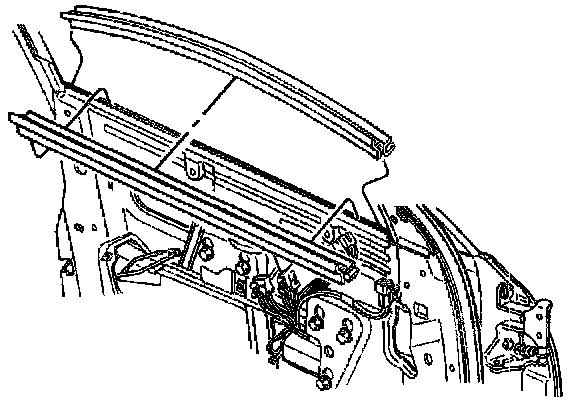

1. Install the front door inner belt sealing strip to the pinchweld flange.
Press into place until fully seated.
2. Install the front door inner trim panel.
3. Raise the front door window.
