Water Deflector

REMOVAL PROCEDURE

Water Deflector Replacement: Front Door - Removal Procedure:

1. Remove the front door trim panel.
2. Remove the front door radio speaker.
3. Remove the water deflector.

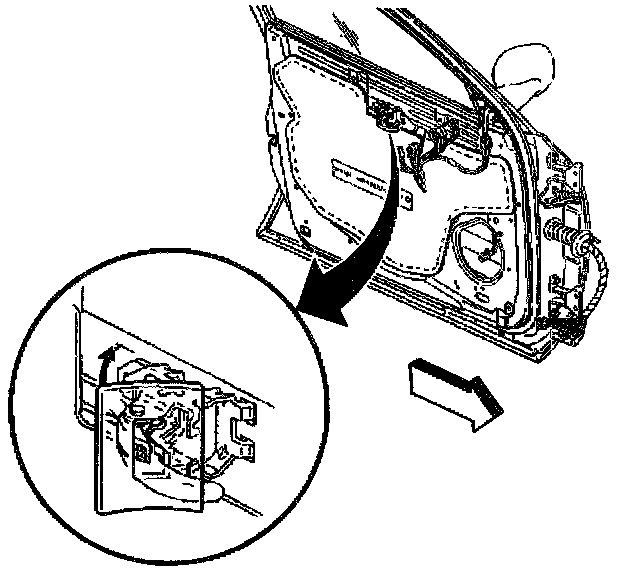

4. Remove the door handle water deflector, if replacing.

INSTALLATION PROCEDURE

Water Deflector Replacement: Front Door - Installation Procedure:

1. Install the door handle water deflector, if removed.
2. Install the water deflector to the door inner panel. Use a roller around the periphery of the deflector to ensure the proper seating.
3. Install the front door radio speaker.
4. Install the trim panel.
