Rubber Conduit

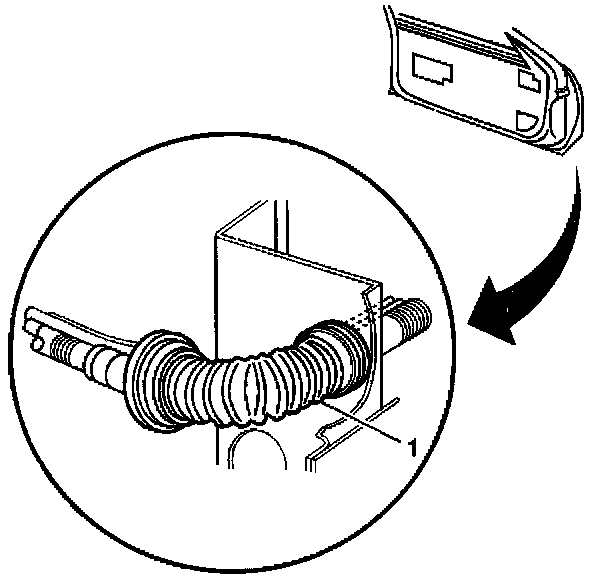

REMOVAL PROCEDURE

Rubber Conduit Replacement: Front Door - Removal Procedure:

1. Remove the conduit from the A-pillar.
2. Disconnect the front door wiring harness electrical connectors.
3. Remove the conduit from the front door.
4. Remove the conduit from the wiring harness.

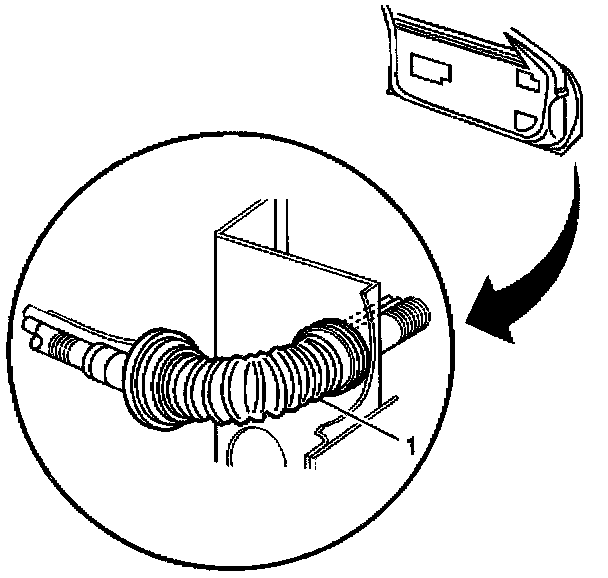

INSTALLATION PROCEDURE

Rubber Conduit Replacement: Front Door - Installation Procedure:

1. Install the wiring harness into the conduit.
2. Install the conduit to the front door.
3. Connect the front door wiring harness electrical connectors.
4. Install the conduit to the A-pillar.
