Outer

REMOVAL PROCEDURE
Tools Required
J 38776 Door Trim Pad and Garnish Clip Remover

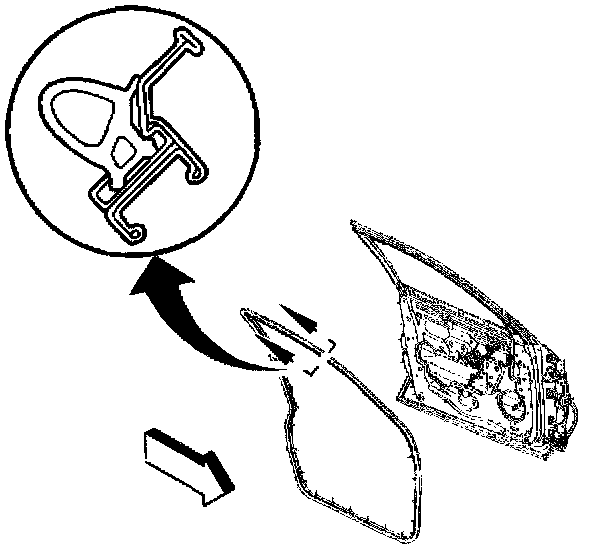

Weatherstrip Replacement: Front Door - Removal Procedure:

1. Open the front door.
2. Remove the lower half of the front door weatherstrip and retainers using J 38778.
3. Remove the upper half of the weatherstrip by pulling the weatherstrip from the track.
4. Remove the weatherstrip from the door.

INSTALLATION PROCEDURE

Weatherstrip Replacement: Front Door - Installation Procedure:

1. Install the weatherstrip to the front door.
2. Press the upper half of the weatherstrip into the track.
3. Install the lower half of the weatherstrip and retainers by pressing the retainer in until each retainer is fully seated.
4. Close the front door
