Moulding and Trim

REMOVAL PROCEDURE

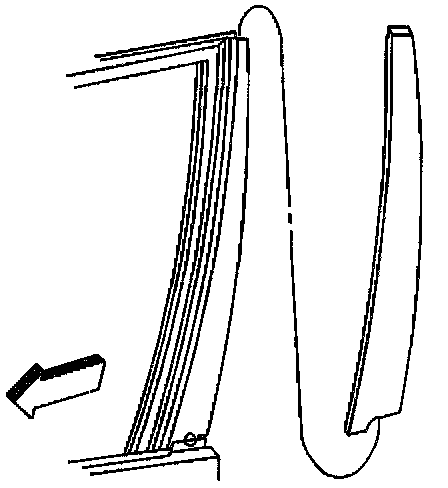

Door Frame Applique Replacement: Front - Removal Procedure:

1. Remove the door outer belt sealing Strip screw and remove the strip.
2. Unsnap the rear of the window weatherstrip retainer. Hold the weatherstrip away from the door.
3. Slide the door frame applique upwards.
4. Remove the door frame applique from the door.

INSTALLATION PROCEDURE

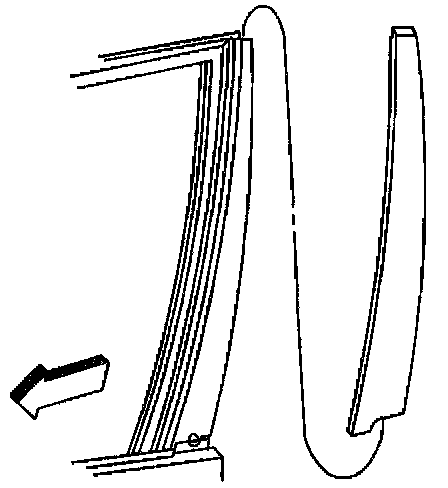

Door Frame Applique Replacement: Front - Removal Procedure:

1. Install the door frame applique to the door.
2. Slide the door frame applique downwards.
3. Install the rear of the window weatherstrip retainer.
4. Install the outer belt sealing strip screw.

Tighten
Tighten the outer belt sealing strip screw to 1.5 N.m (13 lb in).
