Warning Reflector

REMOVAL PROCEDURE

Reflector Replacement: Front Door Warning - Removal Procedure:

1. Open the front door.

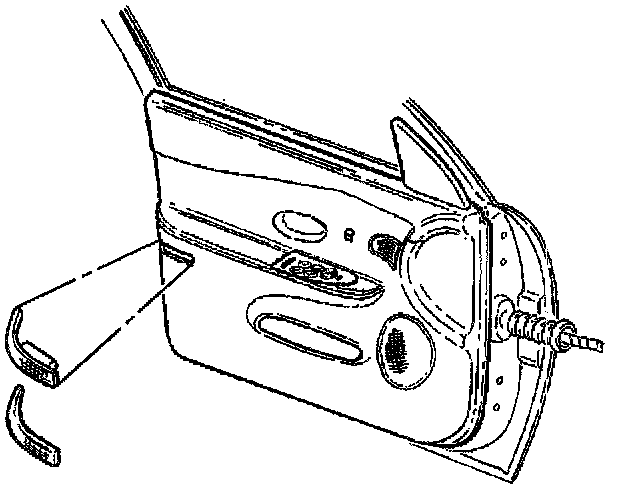

2. Remove the warning reflector from the front door inner trim panel using a small flat-bladed tool. Push on the tabs from the top of the warning reflector.
3. Remove the warning reflector from the front door inner trim panel.

INSTALLATION PROCEDURE

Reflector Replacement: Front Door Warning - Installation Procedure:

1. Install the warning reflector into the front door inner trim panel.

Press into place until fully seated.
2. Close the front door.
