Window Belt Inner

REMOVAL PROCEDURE

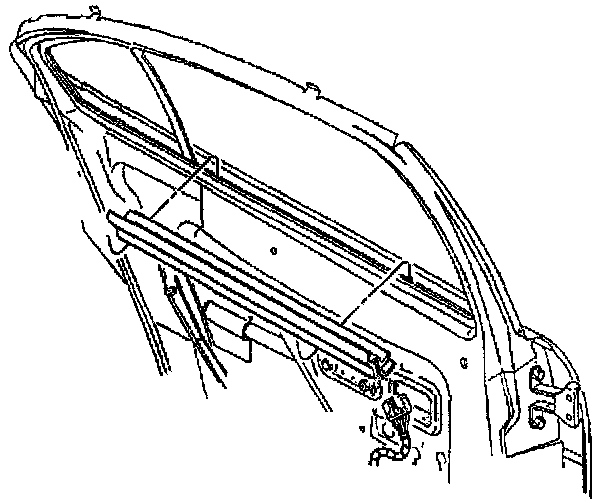

Sealing Strip Replace - Rear Door Window Belt Inner - Removal Procedure:

1. Lower the rear door window.
2. Remove the door trim panel.
3. Remove the inner belt sealing strip by lifting the sealing strip off the pinchweld flange.

INSTALLATION PROCEDURE

IMPORTANT:
1. Ensure the front end of the inner belt sealing strip is inserted into the gap formed by the weatherstrip and the door inner panel.
2. Ensure the rear end of the inner belt sealing strip is flush to the rear leg of the weatherstrip but not interfering with the path of the window.

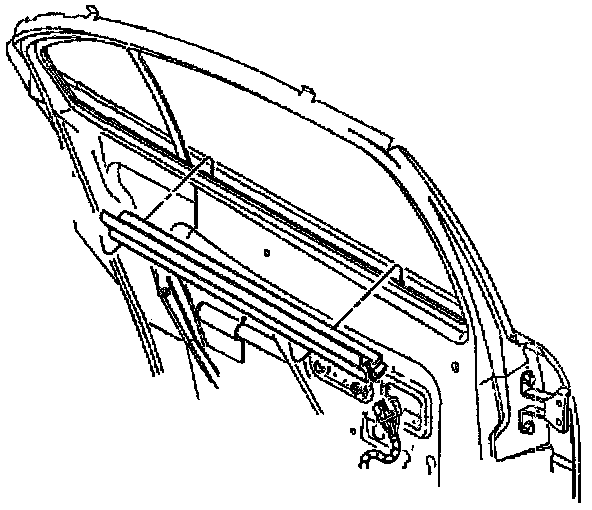

Sealing Strip Replace - Rear Door Window Belt Inner: Removal Procedure:

1. Install the inner belt sealing strip to the pinchweld flange.

Press the sealing strip into place until fully seated.
2. Install the door trim panel.
3. Raise the window.
