REMOVAL PROCEDURE
Tools Required
J 38778 Door Trim Pad and Garnish Clip Removal

Fascia Support Replacement: Rear Bumper Outer - Removal Procedure:

1. Remove the rear bumper fascia.

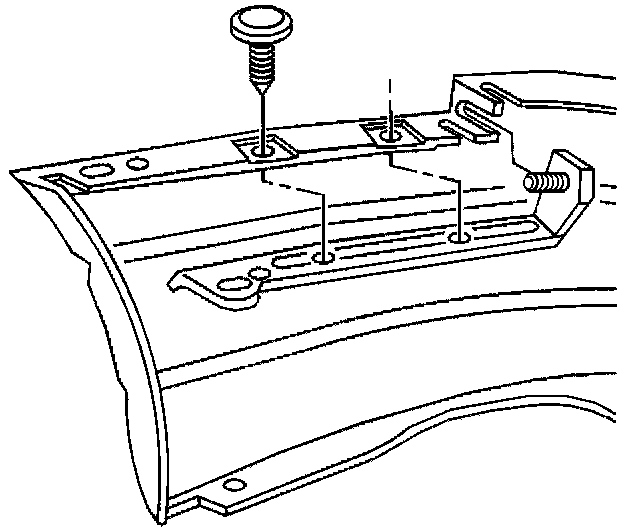

2. Remove the rear bumper fascia reinforcement retainers using J 3877&
3. Remove the rear bumper fascia reinforcement.

INSTALLATION PROCEDURE

Fascia Support Replacement: Rear Bumper Outer - Installation Procedure:

1. Install the rear bumper fascia reinforcement to the bumper fascia.
2. Install the rear bumper fascia reinforcement retainers.
3. Install the rear bumper fascia.
