With Fog Lamp

REMOVAL PROCEDURE

Fascia Support Replacement: Front Bumper Lower (With Fog Lamp) - Removal Procedure:

1. Remove the front bumper fascia.

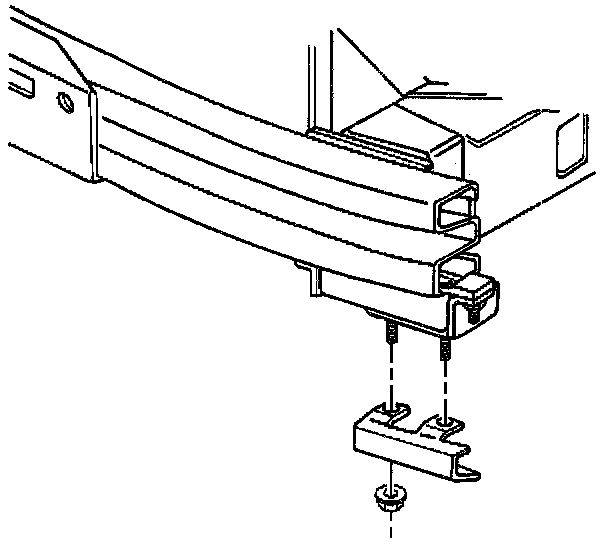

2. Remove the front fog lamp bracket nuts.
3. Remove the front bumper fascia lower support.

INSTALLATION PROCEDURE

Fascia Support Replacement: Front Bumper Lower (With Fog Lamp) - Installation Procedure:

1. Install the front bumper fascia lower support to the fog lamp.
2. Install the front fog lamp bracket nuts.

Tighten
Tighten the front fog lamp bracket nuts to 10 N.m (89 lb in).

3. Install the front bumper fascia.
