Upper

REMOVAL PROCEDURE

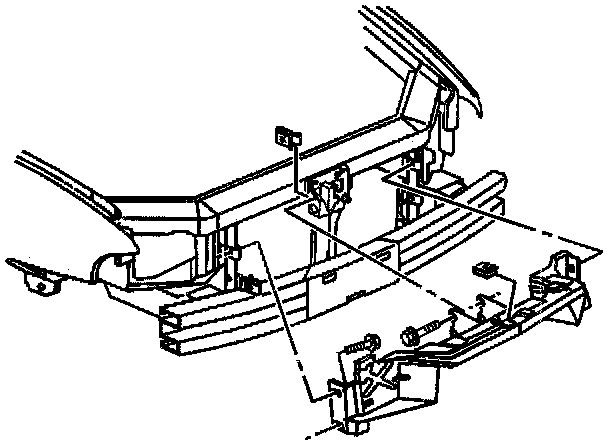

Fascia Support Replacement: Front Bumper Upper - Removal Procedure:

1. Remove the headlamps.
2. Remove the front bumper fascia.
3. Remove the front bumper fascia center support bolts.
4. Remove the front bumper fascia upper support bolts.
5. Remove the front bumper fascia upper support.

INSTALLATION PROCEDURE

Fascia Support Replacement: Front Bumper Upper - Installation Procedure:

1. Install the front bumper fascia upper support to the radiator support.
2. Install the front bumper fascia upper supports bolts.

Tighten
Tighten the front bumper fascia upper support bolts to 7 N.m (62 lb in).

3. Install the front bumper fascia center support bolts.

Tighten
Tighten the front bumper fascia center support bolts to 10 N.m (89 lb in).

4. Install the front bumper fascia.
5. Install the headlamps.
