Energy Absorber Replacement - Rear

REMOVAL PROCEDURE
Tools Required
J 38778 Door Trim Pad and Garnish Clip Remover

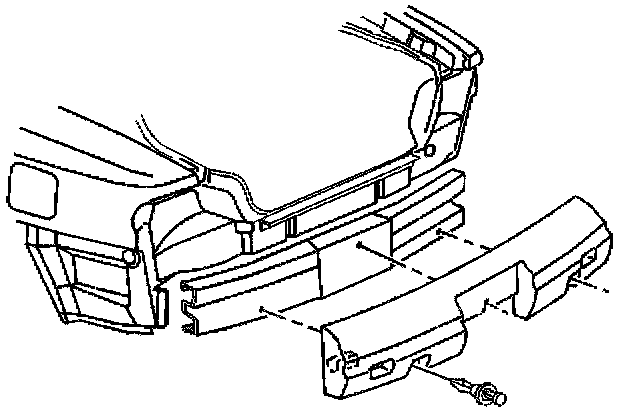

Energy Absorber Replacement: Rear - Removal Procedure:

1. Remove the rear bumper fascia.
2. Remove the rear bumper fascia energy absorber retainers using J 38778.
3. Remove the rear bumper energy absorber.

INSTALLATION PROCEDURE

Energy Absorber Replacement: Rear - Installation Procedure:

1. Install the rear bumper energy absorber to the rear bumper impact bar.
2. Install the rear bumper fascia energy absorber retainers.
3. Install the rear bumper fascia.
