Impact Bar Replacement - Front Bumper

REMOVAL PROCEDURE

Impact Bar Replacement: Front Bumper - Removal Procedure:

1. Remove the front bumper fascia.

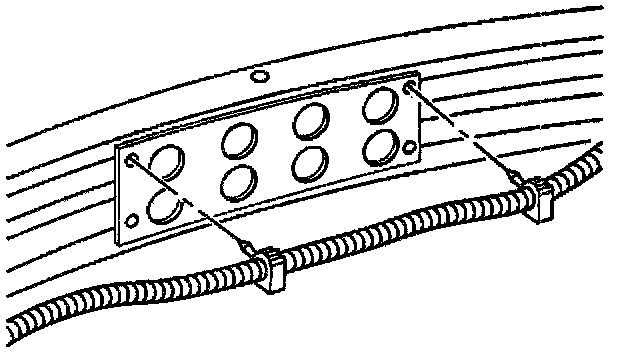

2. Remove the front bumper energy absorber.
3. Remove the wiring harness from the rear of front bumper impact bar.
4. Remove the fog lamps.

Impact Bar Replacement: Front Bumper - Removal Procedure:

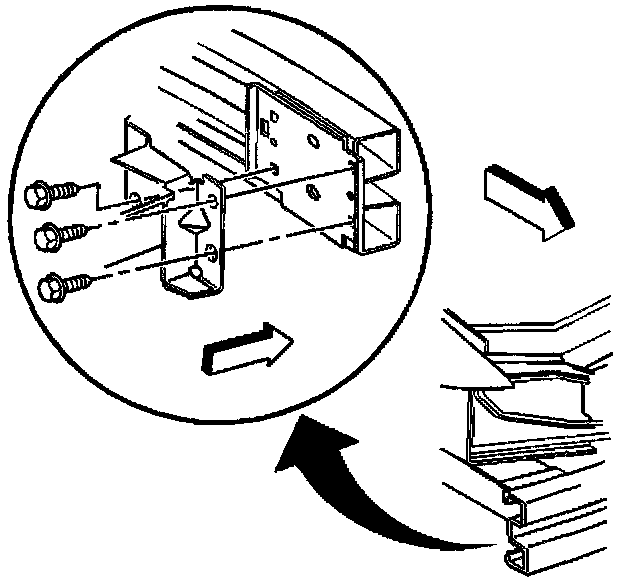

5. Remove the front bumper impact bar bolts.

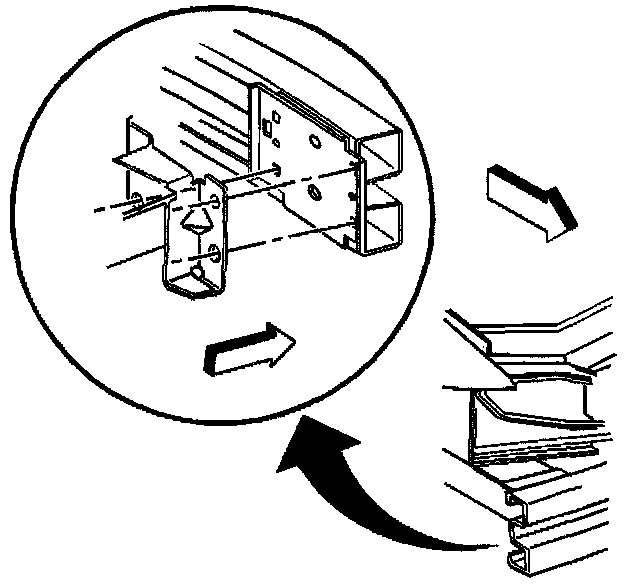

Impact Bar Replacement: Front Bumper - Removal Procedure:

6. Remove the front bumper impact bar.

INSTALLATION PROCEDURE

Impact Bar Replacement: Front Bumper - Installation Procedure:

1. Install the front bumper impact bar to the body.

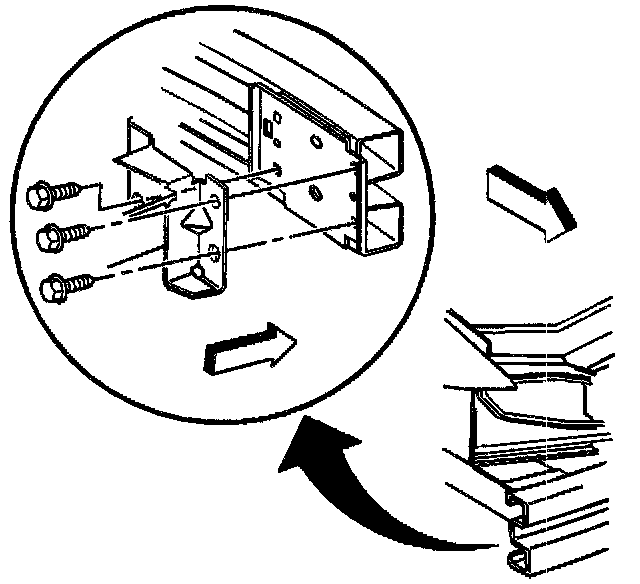

Impact Bar Replacement: Front Bumper - Installation Procedure:

2. Install the front bumper impact bar bolts.

Tighten
Tighten the front bumper impact bar bolts to 25 N.m (18 lb ft).

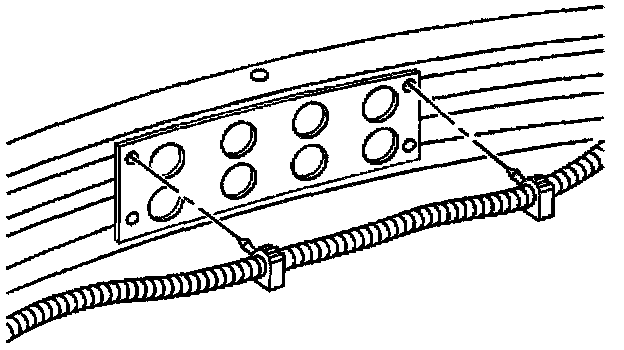

Impact Bar Replacement: Front Bumper - Installation Procedure:

3. Install the wiring harness to the rear of the front bumper impact bar.
4. Install the fog lamps.
5. Install the front bumper energy absorber.
6. Install the front bumper fascia.
