Rear

REMOVAL PROCEDURE

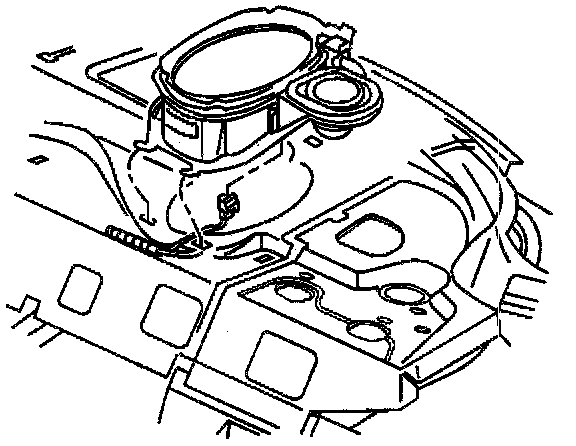

Speaker Replacement: Rear - Removal Procedure:

1. Remove the rear window trim panel.
2. Depress the rear speaker rear retainer to release, then raise the rear of the speaker slightly.

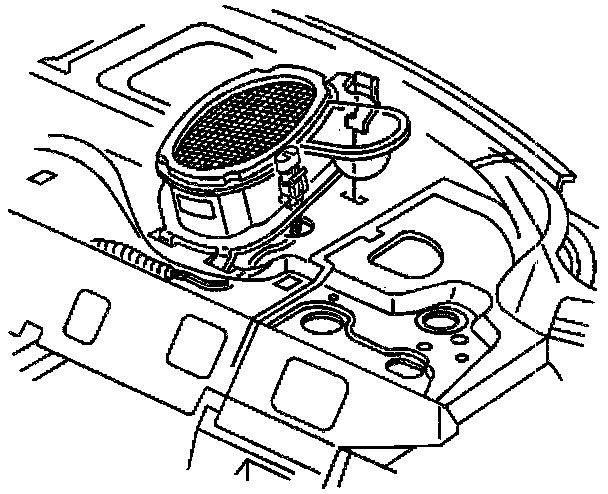

Speaker Replacement: Rear - Removal Procedure:

3. Slide the speaker rearward enough to release the speaker forward retaining tabs.

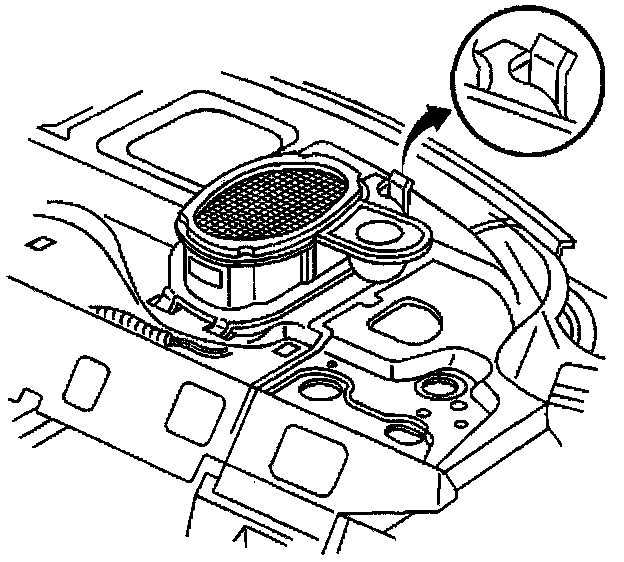

Speaker Replacement: Rear - Removal Procedure:

4. Disconnect the electrical/audio connector from the rear speaker.
5. Remove the rear speaker.

INSTALLATION PROCEDURE

Speaker Replacement: Rear - Installation Procedure:

1. Connect the electrical/audio connector to the rear speaker.

Speaker Replacement: Rear - Installation Procedure:

2. Align and insert the speaker forward retaining tabs into the forward locating slots on the rear shelf.
3. Insert the speaker rear retaining tab into the rear slot on the rear shelf, then press the retainer down to secure the speaker in place.
4. Install the rear window trim panel.
