Front

REMOVAL PROCEDURE

Speaker Replacement: Front - Removal Procedure:

1. Remove the front door trim panel.

IMPORTANT: Note the orientation of the front speaker to the retainers before removal.

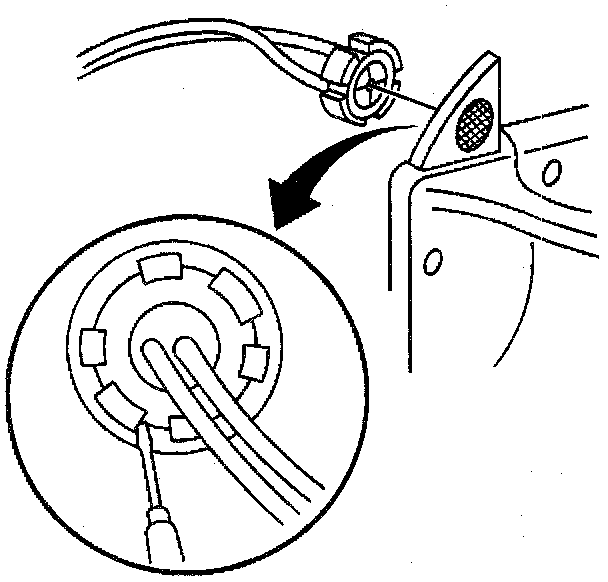

2. Using a small flat-bladed tool, remove the front speaker from the front door trim panel.

INSTALLATION PROCEDURE

Speaker Replacement: Front - Removal Procedure:

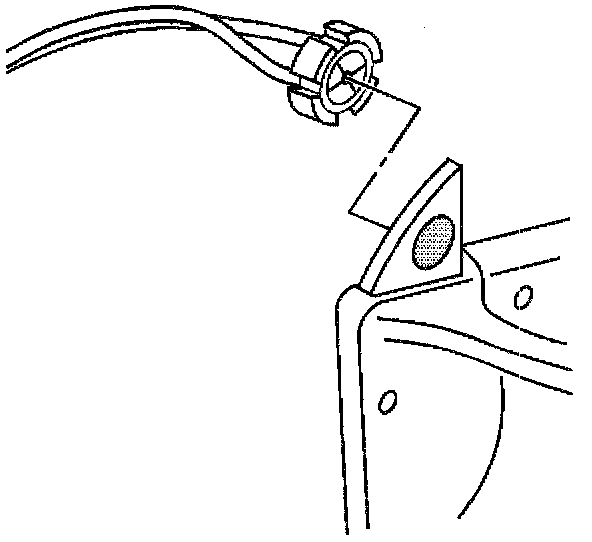

1. Align the front speaker to the speaker retainers on the front door trim panel, as noted before removal.
2. Press the front speaker into the speaker retainers until fully seated.
3. Install the front door trim panel.
