Radio Replacement

REMOVAL PROCEDURE

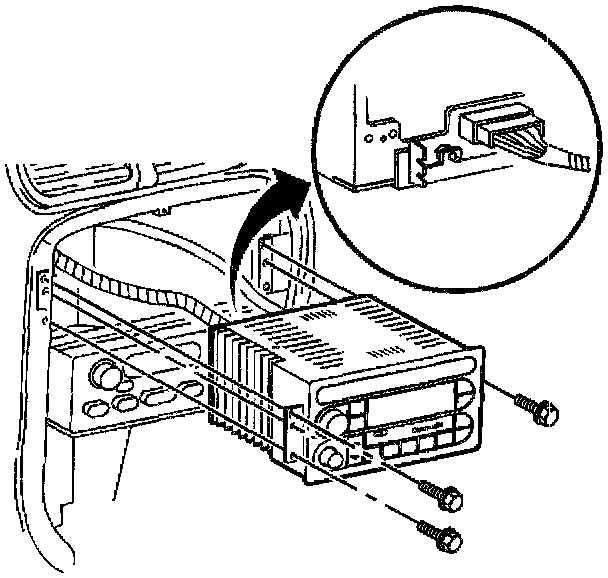

Radio Replacement: Removal Procedure:

1. Remove the Instrument Panel (IP) accessory trim plate.
2. Remove the screws retaining the radio control to the IP.
3. Begin to remove the radio control from the IP enough to access the connectors at the rear of the radio control.

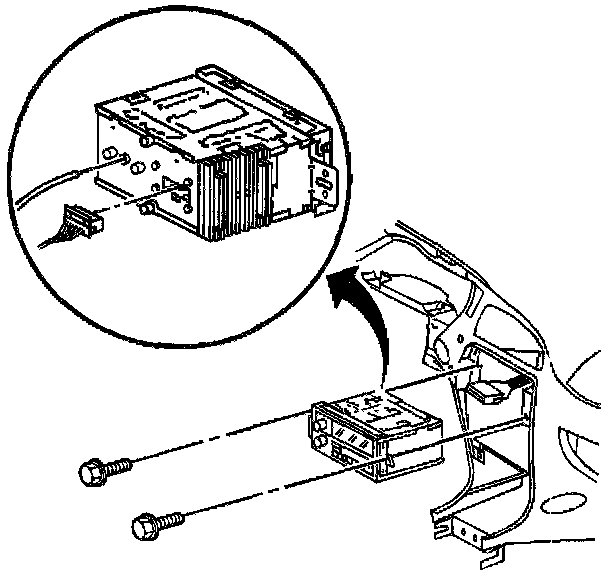

Radio Replacement: Removal Procedure:

4. Disconnect the electrical/audio and the coaxial cable connectors from the radio control.
5. Remove the radio control.

INSTALLATION PROCEDURE

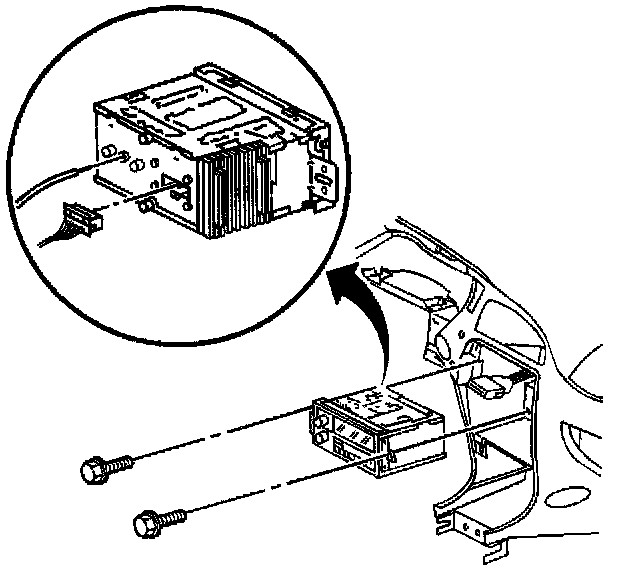

Radio Replacement: Installation Procedure:

1. Connect the electrical/audio and the coaxial cable connectors to the radio control.

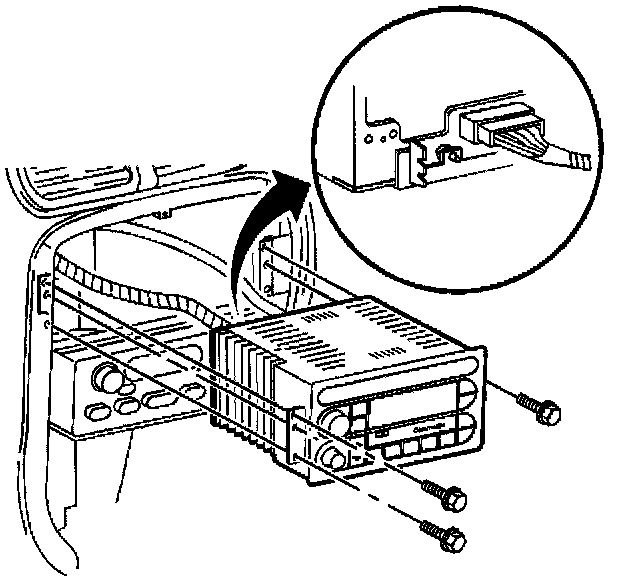

Radio Replacement: Installation Procedure:

2. Install the radio control into position in the IP.

Align the radio control locator tab to the IP locator hole while carefully pressing the radio control into the IP until fully seated.
3. Install the radio control retaining screws.

Tighten
Tighten the radio control retaining screws to 2 N.m (18 lb in).

4. Install the IP accessory trim plate.
