Home
>>
Oldsmobile
>>
1998
>>
Intrigue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Diagrams
>>
Electrical Diagrams
>>
Compact Disc Player (CD)
Compact Disc Player (CD)

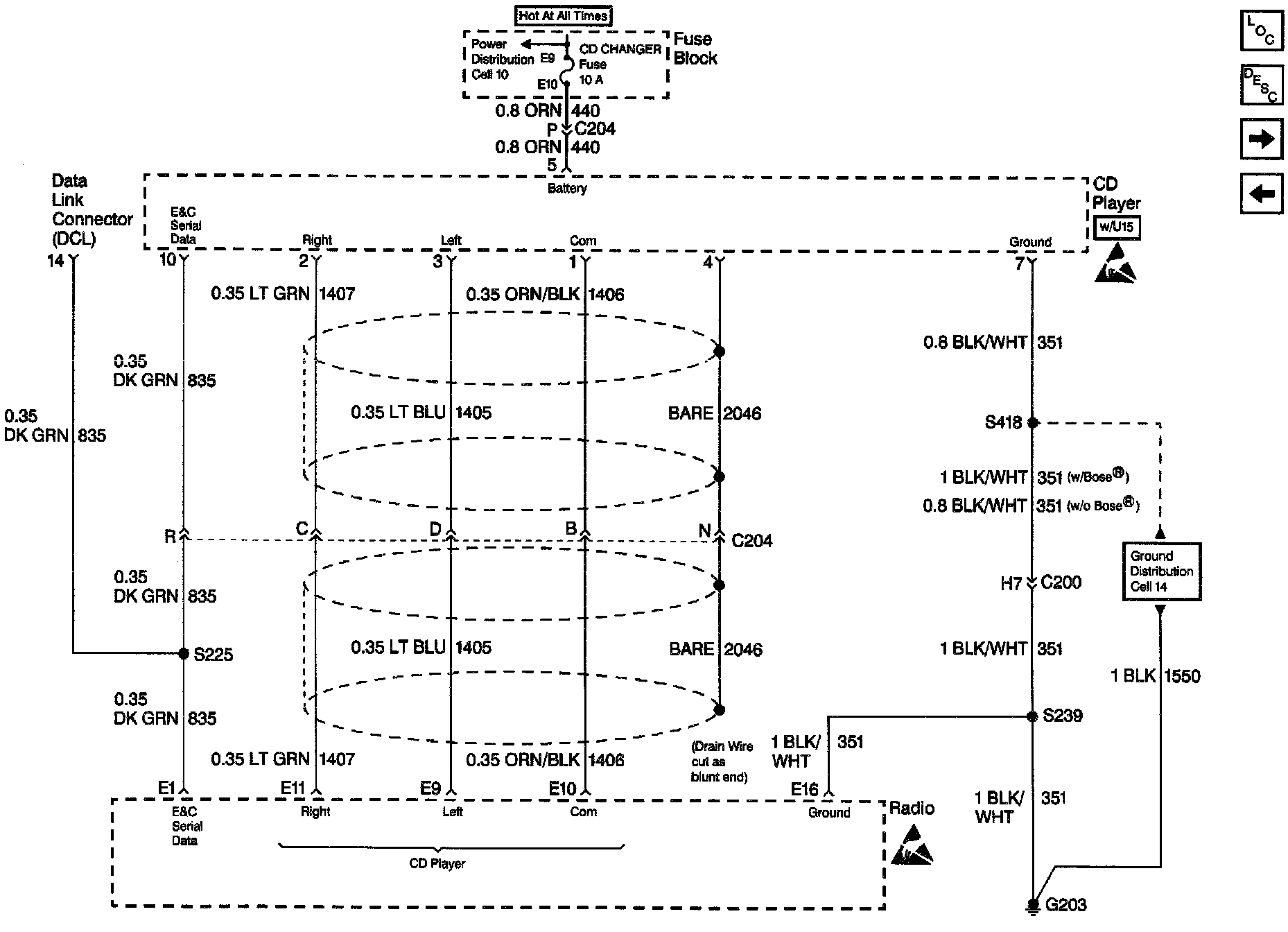

Radio/Audio System Schematics: CD Player:
