Windshield Washer Pump: Service and Repair

REMOVE OR DISCONNECT

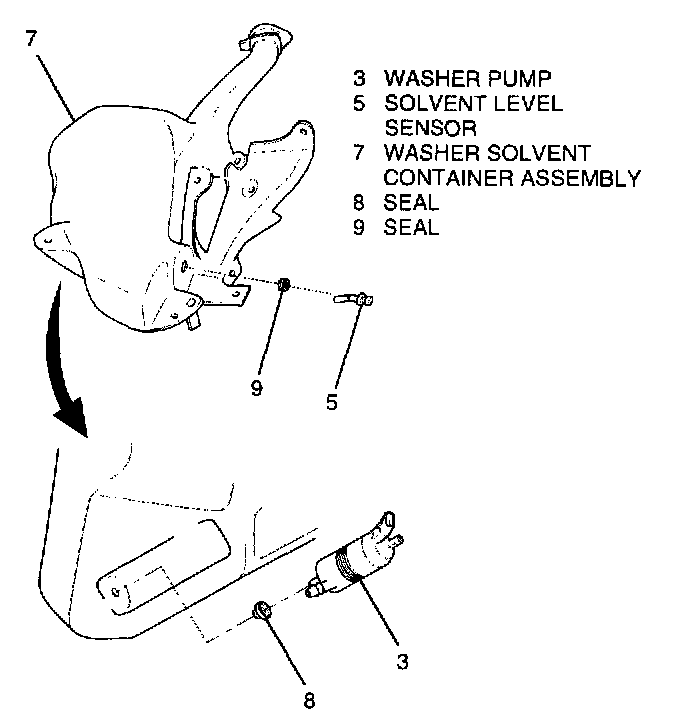

1. Washer solvent container assembly from vehicle. Refer to "Washer Solvent Container Assembly Replacement." Service and Repair
2. Drain solvent from washer solvent container assembly (7).
3. Washer pump (3) from washer solvent container assembly (7).
A. Pull top of washer pump (3) out from side of washer solvent container assembly (7).
B. Pull washer pump (3) up out of washer solvent container assembly (7).
4. Seal (8) from washer solvent container assembly (7).

INSTALL OR CONNECT

IMPORTANT
^ Lubricate seal with windshield washer solvent to ease installation.

1. Seal (8) in washer solvent container assembly (7).
2. Washer pump (3) in washer solvent container assembly (7).
A. Push washer pump (3) down into washer solvent container assembly (7) completely.
B. Push top of washer pump (3) into side of washer solvent container assembly (7).
3. Washer solvent container assembly on vehicle. Refer to "Washer Solvent Container Assembly Replacement." Service and Repair
4. Fill washer solvent container assembly (7) with solvent.
