A/T Mount Replacement (Left)

REMOVAL PROCEDURE

IMPORTANT: When replacing any transmission mount, the remaining mount-through bolts and mount bracket-to-cradle nuts need to be loosened, then tightened in the following sequence:





1. Rear mount through bolt.
2. Rear mount bracket to cradle.
3. Front mount bracket to cradle.
4. Front mount through bolt.
5. Left mount through bolt.

This procedure will eliminate engine/transmission mount preload, which could cause driveability concerns. Tighten fasteners to manufacturer's specifications.

1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

2. Install the J 28467-360 Engine Support Fixture.
3. Raise the vehicle, refer to Vehicle Lifting.
4. Remove the left front tire and wheel assembly.
5. Remove the left front splash shield.

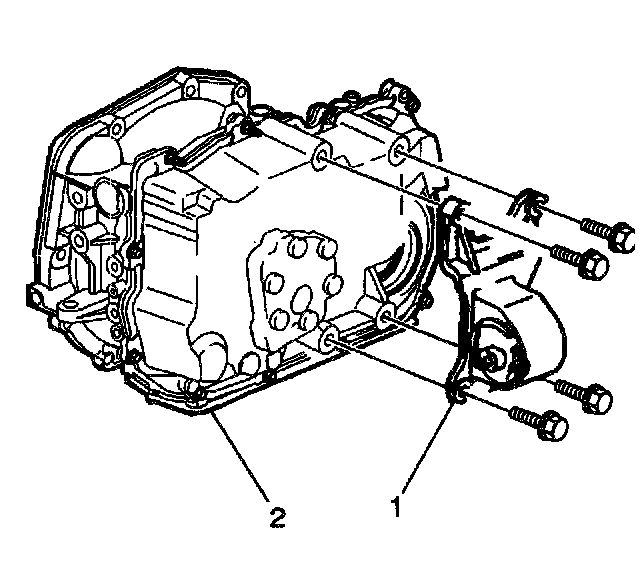

6. Remove the left transmission (2) mount bolts.
7. Remove the left transmission mount.

INSTALLATION PROCEDURE





1. Install the left transmission mount.
2. Install the transmission (2) mount bolts.
3. Install the left front splash shield.
4. Install the left front tire and wheel assembly.
5. Lower the vehicle.
6. Remove the engine support fixture.
7. Connect the negative battery cable.
