A/T Mount Replacement (Front or Rear)

REMOVAL PROCEDURE

^ Tool Required:
- J 28467-360 Engine Support Fixture

IMPORTANT: When replacing any transmission mount, the remaining mount-through bolts and mount bracket-to-cradle nuts need to be loosened, then tightened in the following sequence:





1. Rear mount through-bolt.
2. Rear mount bracket-to-cradle.
3. Front mount bracket-to-cradle.
4. Front mount through-bolt.
5. Left mount through-bolt.

This procedure will eliminate engine/transmission mount preload, which could cause driveability concerns. Tighten fasteners to manufacturer's specifications.

1. Disconnect the negative battery cable.
2. Install the J 28467-360.
3. Raise the vehicle. Refer to Vehicle Lifting.

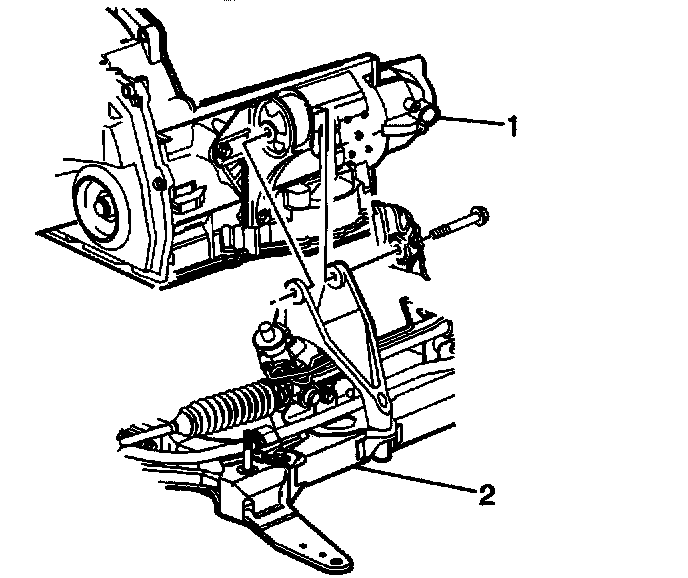

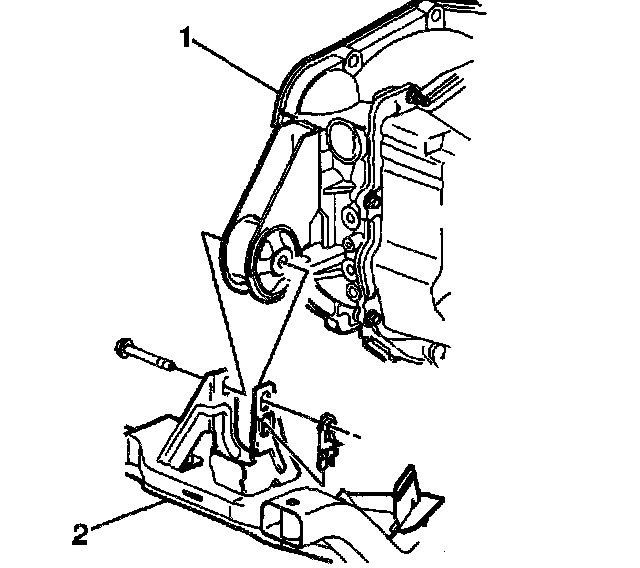

4. Remove the transmission (1) mount (2) assembly bolts.





5. Remove the transmission (1) mount.

INSTALLATION PROCEDURE

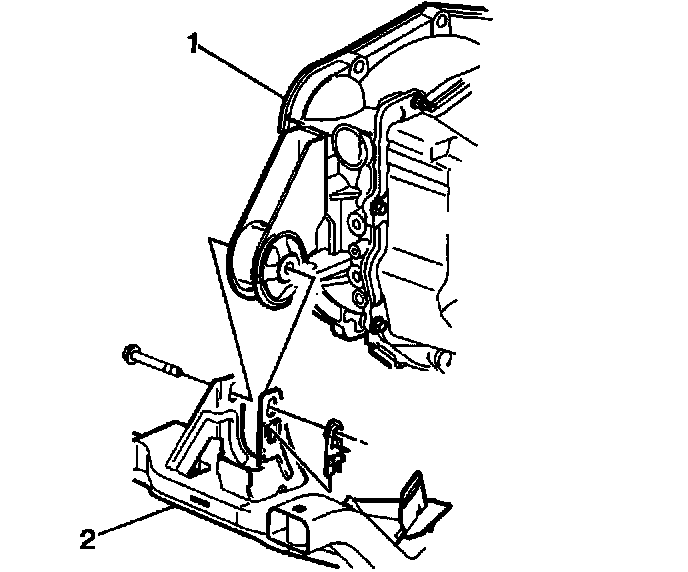

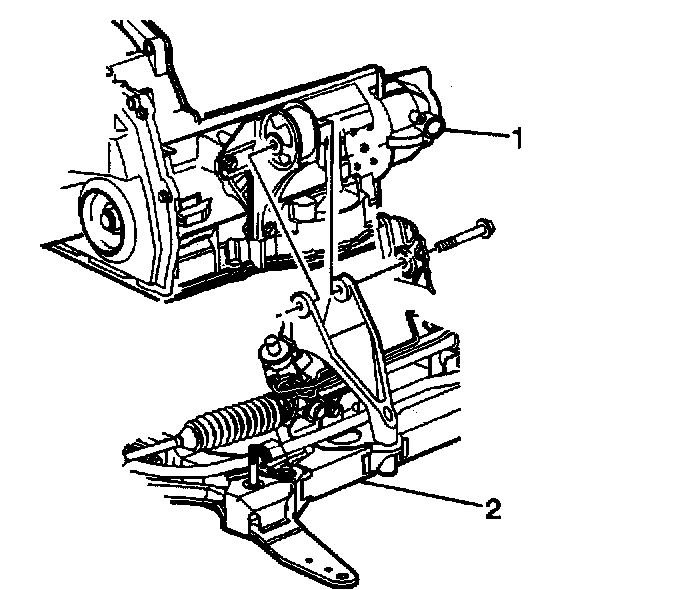

1. Install the transmission (1) mount.





2. Install the transmission (1) mount assembly bolts.
3. Lower the vehicle.
4. Remove the J 28467-360.
5. Connect the negative battery cable.
